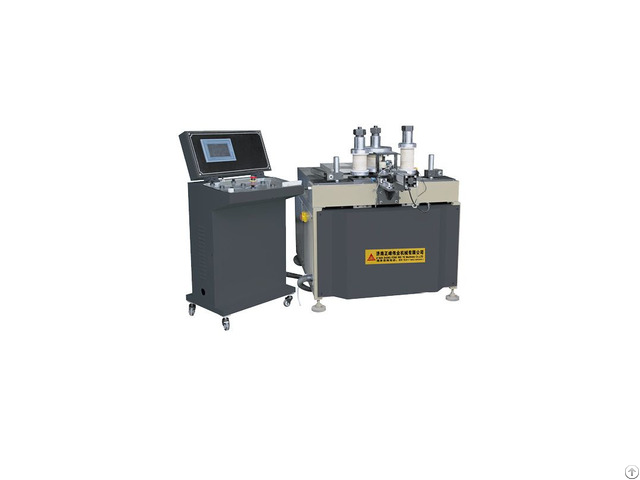

Cnc Roll Bending Machine For Aluminum Window And Door Machines - China

1 - This CNC Roll bending machine is suitable for various metal profile and irregular profiles rolling .

The machine was controlled by PLC, easy for operation

2 - This machine is mainly for iron, steel, aluminum and other special shade material of metal profiles, as well as profiles of arc bending processing operation, is a ideal equipment for furniture manufacturer, iron works manufacturers, alumnum windows and doors manufactures, iron craft manufacturer.

Automatic numerical control system easy operation, bends round high precison, completely solve the inaccurate product arc bending deformation, surface scratches, fold the curved arc industry challenges

3 - CNC software, make profiles arc bending operation is very simple

4 - Color touch-screen operation automated control, clear interface convenient operation simple

5 - Imported PLC integrated control, with automatic detection, diagnosis function, circuit high certainty, environmental suitability to the job.

Technical Parameters

1 - Power supply 380V/50HZ

2 - Motor power of rollers 2.25kw

3 - Min arch diameter 200mm

4 - Max profile width 120mm

5 - Max roller die diameter 180mm

6 - Work pressure 180kn

7 - Rear axes 350-600mm

8 - Roller axes diameter 40mm

9 - Axes speed 1-8r/min

10 - Orientation precision 0.05mm

11 - Max force roller feeding distance 180mm

12 - Overall dimension 2300*1300*1600mm
