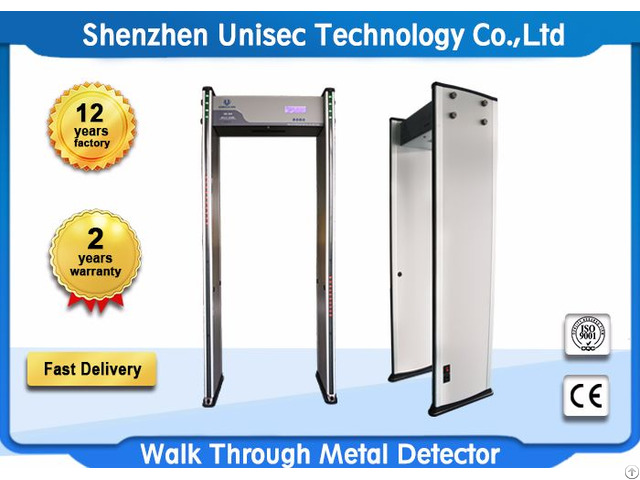

Economic Walk Through Metal Detector Security Scanner With Pc Network Functione - China

MODEL: UB500

6 zones standard

PARAMETERS

Power Supply: AC85V-264V

Working temperature: -20℃--+50â„ ƒ

Working Frequency : 4KHZ—8KHZ

Standard External size: 2200mm(H)X800mm(W)X580mm( D)

Standard Internal size: 2010mm(H)X700mm(W)X500mm( D)

Package size for door panels: 2290*560*180mm *1ctn

Package size for control unit: 760*380*260 mm*1ctn

Gross weight: 63KG CHARACTERISTIC & FUNCTION

 Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;

 Sensitivity adjustable: Each zone has 100 sensitivity level

 Sound & LED alarm: Both Side LED indicator, easily show where the metal is.

 Automatically count passengers and alarm times

 Alarm strength indicator on control panel

 Password protection, only the authorized person can operate.

 Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.

 Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.

 Using high density fireproof material

 Program Self-diagnostic when power on, no need initial or periodic calibration

 Modularization design, easy for maintenance and replacement.

 Sensitivity Test piece: One yuan Coin, omnidirectional detection

 4-8 hours backup battery (Option) Application Exhibition center, Electronic Factory, Bank, Prison, Government office, Hotel etc
