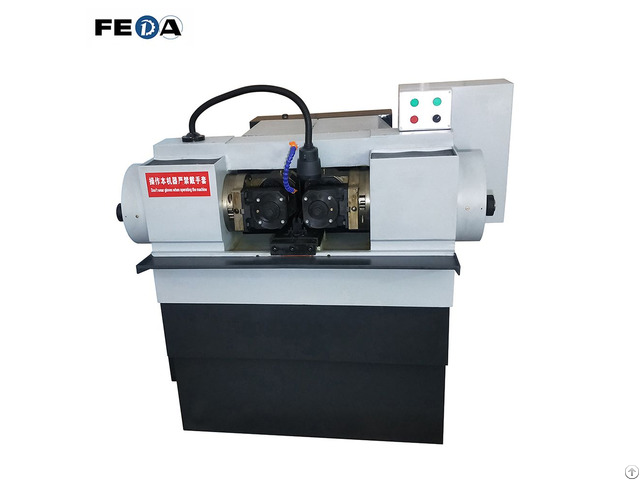

High Speed Thread Rolling Machine Fd 12t - Chinaprice: 7580.00 Dollar US$
Working diameter 2-20/mm Thread pitch 0.4-2.5P Thread length In feed & Thru feed Spindle speed 42/53/68/87rpm Outside diameter of rolling die 120mm-175mm Inside diameter of rolling die(keyway) 54mm Thickness of rolling die 80mm Min.
center distance between die spindles 120mm Max.
center distance between die spindles 196mm Machine motor / Hydraulic motor 4.2KW Max.
rolling pressure 12T Supply voltage 380V 3P 50Hz Weight(reference) 1500(KG) Package Dimension(L*W*H) 1325*1300*1400 mm Dimension(L*W*H) 1176*1160*1200 mm
- Posted By: Shenzhen Feda Machinery Industry Co., Ltd
- Phone: 13612982050
- Address: No. 142, Honghu Road, Yanchuan Community, Yanluo Street, Shenzhen , Guangdong , China
- Website: http://www.szfeda.com
Published date: November 5, 2021
- Business Description: FEDA is a modern state-level high-tech enterprise integrating R & D, production and sales, which focus on manufacturing of thread rolling machine, thread rolling dies, automatic tapping machine, auto lathe machine & vibration bowl for more than 20 years, locates in Shenzhen, China.
Thread Rolling Machine Fd 15tMachinery - Metal Working - Shenzhen Feda Machinery Industry Co., Ltd - China - November 5, 2021 - 10850.00 Dollar US$
Working diameter 4-60mm Thread pitch 0.8-5mm Thread length In feed or Thru feed Spindle speed 28/35/45/56rpm Outside diameter of rolling die 135-178mm Inside diameter of rolling die 54mm Thickness of rolling die 120mm Min.center distance between die ...
Heavy Duty Fiber Laser Cutting Machine Akj1530f3Machinery - Metal Working - ACCTEK - China - November 1, 2021 - check with company for price
Heavy duty structure(5000KG), X axis Japanese Yaskawa servo motor 850W, Y axis1800w, strong anti-interference ability and strong anti-overload capability. It can cut and punch different kind of metal materials with high precision and high speed. Mode...
Portable Fiber Laser Marking Machine Ak20f Ak30fMachinery - Metal Working - ACCTEK - China - November 1, 2021 - check with company for price
The portable fiber laser marking machine is small size, high efficiency and easy to install. Its main advantages are permanent marking, fast marking speed and low energy consumption. High Precision, high speed, and easily operating. NO Description Pa...
