Hydraulic Milling Machine Cf 1230h - Taiwan

price: 1.00 Dollar US$

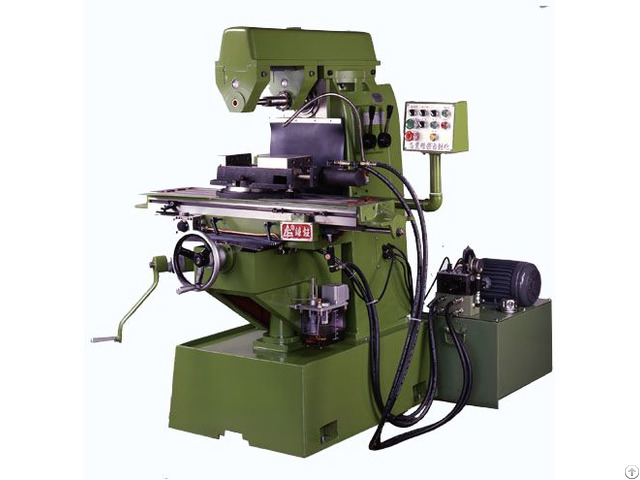

Hydraulic Milling Machine Cf 1230h

Products Photos Catalog Hydraulic Milling Photos Catalog

Models (CF-1230H)

Table

Working surface(length × width) 1000×230mm

Table travel(x/y/z) 500×230×385mm

T-slots 16mm×3

Horizontal Spindle

Spindle nose N.T.#40

Spindle speed(6 steps)R.P.M 50, 120, 210, 320, 470, 1180(60Hz)

40, 100, 170, 260, 390, 980(50Hz)

Distance from spindle center to table top 0-470mm

Distance from spindle center to ram bottom 115mm

Motors

For horizontal spindle 1.5KW(2HP)-4P

For table feed 1.5KW(2HP)-4P

For cutting fluid pump 0.1KW(1/8HP)-4P

Size of machine

Net weight 1, 000kg

Dimensions of packing case 1150×1150×1670mm


Company Contact:


  • Phone: +886425625559

  • Address: No. 168, Guangqi Rd., Shengang Dist., Taichung City. , Taiwan

  • Email: Email

Published date: September 12, 2016

  • Business Description: LIAN-JENG CORPORATION was established in 1981.

    In the same year we launched the universal vertical and horizontal milling machines,

    whose quality and performance to provide guaranteed excellent machinery for customer's best choice.

    Nevertheless, to obtain better efficiency and consistent quality,

    we put great efforts into developing automatic hydraulic milling machine.
