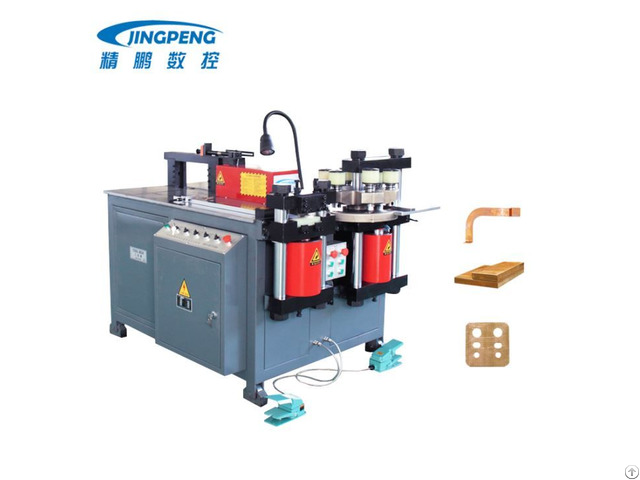

Hydraulic Non Cnc Copper Aluminum Busbar Processing Machine - China

It has three units: punching, bending and cutting.

It used to processing copper and aluminum bus bar in different specification

Product Description Main features of busbar processing machine: 1 - The cut surface is smooth and neat, no droop, no burrs, no waste 2 - Rotary turret punch unit installed 6 dies, less replacing, high efficiency 3 - Easily to be moved with four castors 4 - Closed structure to make sure the flat bending and embossing more smooth, which highly improves the repeating precision during mass production and prolong the working time.

5 - Allow that three working positions can do their only operation at same time without bothering the others.

Detailed Images Technical parameters of busbar machine: Function Item Model

JPMX-303DM

Punching Max.

Punching Force (KN) 300 Punching Diameter Range (MM) 4.3-25 Max.

Thickness (MM) 12 Max.

Width (MM) 150

Shearing/Cutting Max.

Shearing Thickness (MM) 12 Max.

Shearing Width (MM) 150

Honrizental Bending Max.

Bending Force (KN) 300 Max.

Width (MM) 150 Max.

Thickness (MM) 12

Vertical Bending Max.

Width (MM) 100(10mm THK) Max.

Angle (Degree) 90°

Out Dimension MM 1500*1300*1200

Power KW 3*4KW

Weight KG 1250
