Hydraulic Thru Feed Type Thread Rolling Machine - Taiwan

Work piece diameter(mm)Ø10 ~ Ø75

Axial pitch for ISO threads(mm) 1.0P ~ 10.0P

Length of thread rolling(mm) Plunge rolling(In feed): 148(75A: 200) Thru feed rolling: no limited

Spindle speed 20 ~ 50 r.p.m variable speed

Thread rolling die(mm) Diameter Ø200(75A=Ø250)MAX Bore Ø70(75A= Ø85) Length 35, 70, 100, 150(75A=70.100.150.200) Keyway 14X7(75A=18X9)

Distance of the rolling spindles(mm) 275 ~ 195(75A: 300~220)

Output (pieces/min) 4 ~ 20

Swivel of roll-axis ± 6°

Main power motor 25 HP (18.75 kw)(75A=30HP)

Hydraulic motor 7 1/2 HP (5.5 kw)(75A=10HP)

Max rolling pressure 60 TONS

Net weight (Approx.

) 4, 700 kgs

Gross weight (Approx.

) 5, 200 kgs

Overall dimension (L x W x H) 2, 600 mm x 2, 400 mm x 2, 400 mm

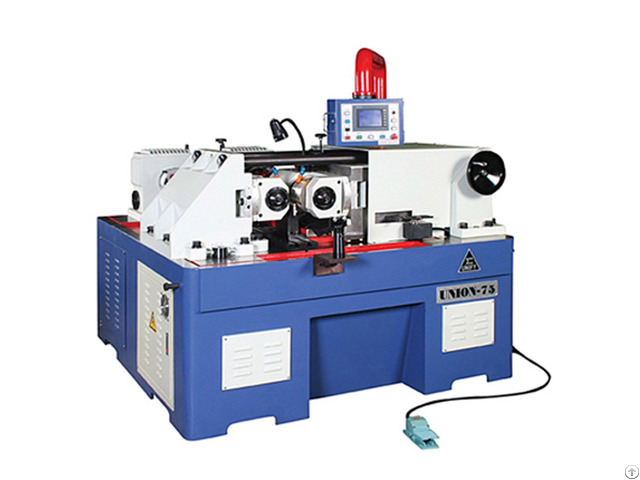

Shipping measurement (L x W x H) 2, 520 mm x 2, 240 mm x 2, 230 mm UM-75 hydraulic thru feed type thread rolling machine is the biggest model in our factory currently.

The controlling of UM-75 is with PLC program and HMI systems.

It is easier for the step adjustments as required.

The features of UM-75 thread rolling machine: Thru feed and in-feed (plunge feed) both available: The rolling time and the rolling length can be adjusted by the sensors.

Powerful rolling pressure : The slide way feeding is driven by hydraulic unit, precision in positioning, owerful without any distortion.

Solid structure: heat treatment of high tension cast iron FC-25 frame is durable

Steady feed motion: Ground square slide way can avoid the jumping, vibration and wear away.

Perfect transmission: The ground-thread worms with heat treatment progress can be matched completely and smoothly with phosphoric brone worm gears.

Specially suitable for: Long length screws, ACME screws, Ball Screws, machine parts, tool and automobile / motorcycle parts.
