Metal Omega Profile Roll Forming Machine - China

Metal Omega Profile Roll Forming Machine

We also can design the machine strictly according to your required profile.

Gypsum Profile Forming Machine SURFACE TREATMENT

1) Processing material: 150mm width steel strip

2) Material thickness: 0.4mm-0.7mm

3) Formed sizes on the machine: as per profile drawings above

4) Main motor power: 4kw

5) Pump power: 4kw

6) Productivity: 4-18m/min

7) Roller stations: 12 steps

8) Roller material: Cr12 steel with vacuum heat treatment HRC57°-60°

9) Active shaft material: 45#steel with high frequency surface treatment and grinding process

10) Shaft diameter: Ф40mm

11) Cutting system: hydraulic cutting, automatic cut to any length you need

12) Cutting blade material: Cr12

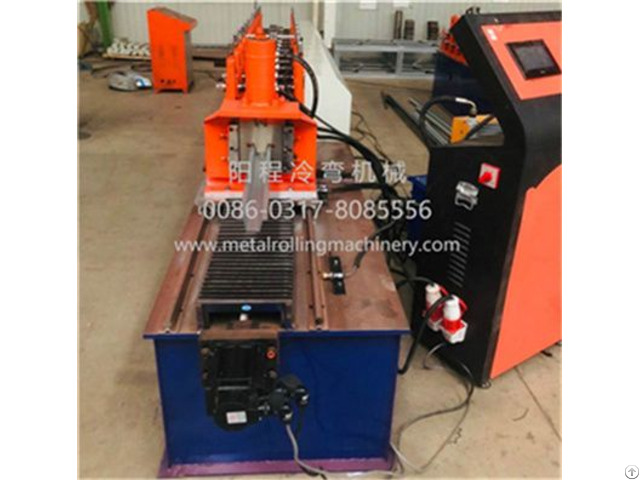

13) Machine construction: as per machine photos

14) Transmission type: double chains

15) Control system: Taiwan Delta PLC computer control system with inveter

16) Power supply: 380V, 3 Phase, 50Hz(or as per your request)

Partition Metal Profile Forming Machine TECHNOLOGY

Manual decoiler→guiding platform→main roll forming machine→hydraulic cutting system→2m output table, 4kw electric-motor, hydraulic station with 4kw electric motor, PLC control system

SALES TERMS

1).

Profile Roll Forming Machine Price: Please contact us, we will try to give you good discount for starting our cooperation

2).

Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment

Or 100% LC at sight

3).

Package: naked with simple plastic film and loaded in one 20-feet container

4).

Delivery time: 50 working days after receipt of the deposit

5).

Guarantee: 12 months.

If any part of machine breaks, we will supply it for free.

6).

After sales service

This Cold Forming Machine is maintained free of charge for 12 months.

When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug.

Buyers should take all the fees for technicians traveling abroad, and pay 100USD\day\person.
