Plasma Cutting Machine R1325pa - China

price: 5000.00 Dollar US$

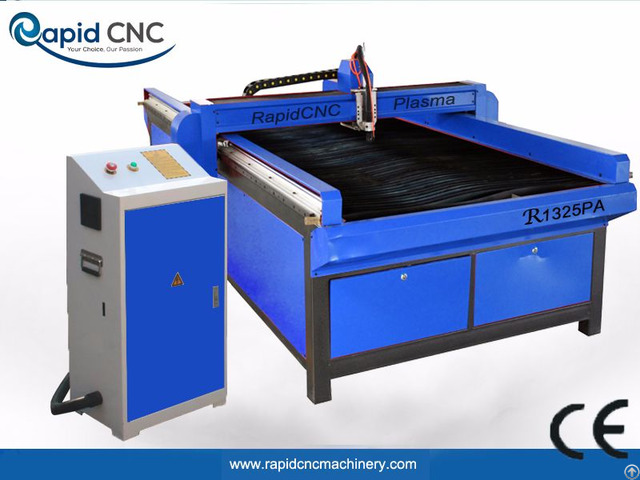

Plasma Cutting Machine R1325pa

Products Photos Catalog Plasma Cutting Machine Photos Catalog

Advertising Plasma R1325PA

Features:

1 - Frame adopts full welded structure, full rigidity make sure machine won’t deform after years of works.

2 - Chinese top quality LGK power source or American Hypertherm power source 40-200A high precision.

DSP control system or Pro Start control system, easy to learn and use.

3 - It can on board metal processing at the same time, save costs and save space.

4 - The CNC system is high configuration.

Automatic arc, stable performance, the success rate of 99% or more.

5 - Clean dust by itself, the replacement of security

6 - Gantry double drive structure, gear transmission without clearance, high quality linear rail, ensure high accuracy and fast speed.

7 - Be able to cut aluminum, steel and any other conductive metal at max speed of 8000mm/min.

8 - Compatible with any design software.

Applications:

1) Applicable Industries: Processing shells of machinery and electronic products, Advertising signs, electrical accessories, board cutting.

2) Applicable materials: metal, bronze, copper and so on.

1 - jpg Technical parameters:

No

Description

Parameter

1

Effective cutting area:

1300x2500 mm

2

Cutting thickness:

0.5-20mm

3

Cutting Speed:

0-8000mm/min

4

X, Y, Z repositioning Accuracy:

±0.05mm

5

Table Surface:

Blade Steel

6

Frame:

Heavy steel welded

7

X, Y Structure:

square orbits

8

Max.

Power Consumption:

<2000W

9

Max.

Rapid Travel Rate:

15000mm/min

10

Max.

Working Speed:

8000mm/min

11

Generator power

45-200A

12

Drive Motors:

Stepper system

13

Working Voltage:

AC220V/50Hz 14

Command Language:

G code

15

Operating System:

DSP System (options: Start)

16

Computer Interface:

USB

17

Flash Memory:

128M(U Disk)

18

Software Compatibility:

Type3/UcancameV9 software


Company Contact:


  • Phone: 008618615288840

  • Address: No.168-1, Huashan Industrial Area,, Jinan City (济南市), Shandong , China

  • Email: Email


Published date: December 20, 2017

  • Business Description: Manufacturer of cnc router machine , cnc laser cutting machine , plasma cutting machine , cnc drilling and milling machine , cutting plotter etc .
