Straightening Machines For Metal Sheet - China

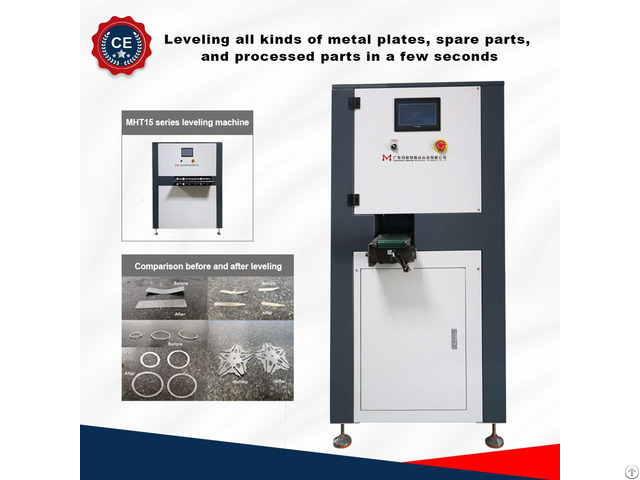

MHT30 Series sheet metal CNC precision leveler parameter table

MachineModel: MHT30-400-19 MHT30-600-19 MHT30-1000-19 MHT30-1300-19

RollerDiameter: φ30mm

RollerNumber: 19

NominalLeveledWidth: 300mm 600mm 1000mm 1300mm

RatedPlateThickness(Q2 35): 0.5~2mm

Max, PlateThickness(Q235): 3mm

Shortest Workpiece: 60mm

Applicable Object: Tape Coiling.

Strip Steel, Sheet Metals, etc.

Function of Leveling machine Under the condition of large elastic-plstic bending, no mater how different the original bending degree, the CNC precision leveling machine uses the "Bauschinger effect" of the material to bend the plate repeatedly, gradually reduce the bending deflection, and gradually change the origina curvature into a single curvature, and finally level it to achieve the leveling accuracy required by the process.

After a series of alternating bending, the sheet metal is controlled by the motor and the PLC to accurately control the lower pressure of each leveling drum, elminating the internal stress, and fundamentally solving the unsatisfactory leveling effect caused by the different stress in each part of the sheet metal, thus achieving high precision leveling.

Company Contact:

• Posted By: Guangdong Dayongsheng Technology Co., Ltd.

• Phone: 13827206784

• Address: Building 3, Jiaying 1st Street ,ShiJie Town, Dongguan , Guangdong , China

• Email:

• Website: https://mhtmachine.com/

• Business Description: Guangdong ( Jiangxi) Mahatma Technology Co., Ltd. —— A high-tech enterprise dedicated to R&D, production and sales of high - precision leveling machines and supporting peripheral equipment .

  Introduce German and Swiss precision leveling / straightening equipment technology , and cooperate with many universities and research institutes in production, learning, and research to continuously carry out technological innovation and production improvement, and combine the needs of many metal precision parts manufacturing enterprises to adopt innovation Design ideas , advanced manufacturing technology , R&D and production : servo CNC high - precision leveling machine , hydraulic high - precision leveling machine , four ( six ) heavy - duty leveling machine, automatic loading and unloading manipulator , robot , laser leveling detector, High - precision uncoiling, leveling, stamping and shearing line and l aser cutting and other automatic production lines.
