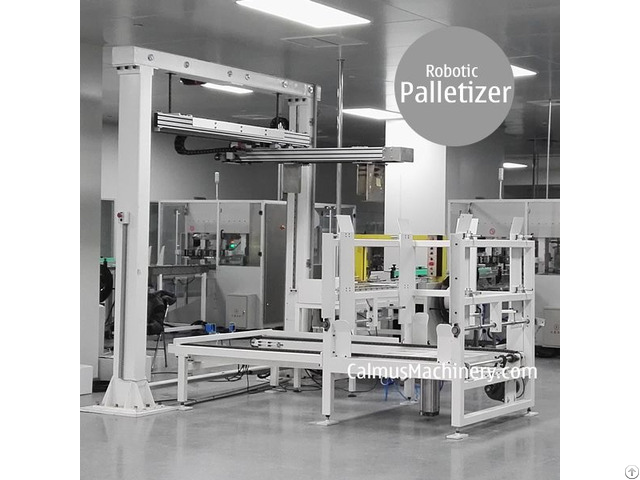

Carton Stacking System Box Palletizing Machine Robotic Palletizer - China

Fully-automatic Low-level Carton Palletizer | Stacking System This is a low-level carton palletizer and used to stack sealed cartons in order on a pallet.

It works automatically and cartons can be stacked on a pallet by multiple layers.

It employs a touch screen PLC controller and is easy to operate.

Composition:

1 - Carton sorting feeder

Sort cartons according to a set pattern and then convey them.

2 - Carton palletizer

Catch sorted carton(s) and then rise, move and put it/them on a pallet.

3 - Pallet storage and feeder

5-10 empty pallets can be stacked in the storage section.

Pallets are fed to the palletizer according to the PLC setting.

4 - Loaded pallet deliver

When a pallet is loaded fully, it will be delivered to an designated location.

Specifications:

Type: low-level, coordinates

Max palletizing capacity: 7 cycles/min (1-4 cartons per cycle which depends on the carton size and weight)

Power supply: 3 phases, customized voltage, 6KW

Air consumption: 500NL/MIN

Air source pressure: 5-6 kgf/cm2

Weight: 2, 000 kg
