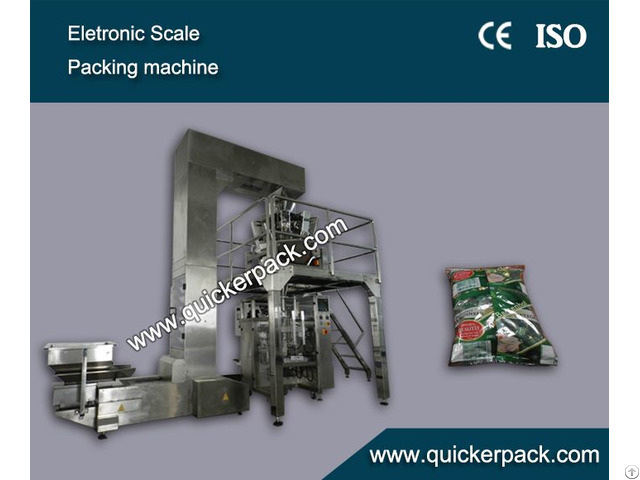

Corn Flakes Packaging Machine With 10 Electric Scales Filling - China

Brief Introduction:

1) Fully automatic packaging machine;

2) Bag shape: gusset bag, pillow bag, stand-up bag, etc.

;

3) Suitable for all kinds of herbs and small puffed food like chips, corn flakes;

4) 10 electric scale weighers, touch screen control;

5) High precision and high speed, large volume.

6) All-round process: filing, weighing, bag forming, sealing, cutting and counting etc.

7)International Approval : ISO9001: 2008

8)Quality Approval : Certification of Compliance

9)Experience : 12 Years Manufacturing

Application:

It is used to pack kinds of grains or granules and small particles like rice, seeds, herbs, nuts, chips, con flakes, and proportional weighing other irregular-shapped materials.

Main Structures and Performance Features:

1 - The whole production line integrates with stamped automatic packaging machine, dedicated precise combined balance with 10 heads, supporting table-board, dedicated chain drive conveyor and final product conveyor.

2 - Servo film conveying system, accurate position, excellent performance, beautiful package effect.

3 - Impeccable automatic alarming protection function, reducing the wear and tear to the lowest.

4 - The machine can automatically perform the whole process like weighing, feeding, filling and bag-forming, date printing etc.

5 - With high precision and high speed, digital weighing sensor makes the precise measurement realized immediately.

6 - The balance can adjust fine the open-and-close speed of the hopper way, avoiding breakage and sticking.

7 - The conveyor can load large volume, and lift high.

Technical data:

Machine type: Automatic Granule Packing Machine Series

Machine model: T68S

Machine name: Automatic Herbal Granules Packing Machine

Machine form: Lapel stamped automatic packaging machine

Bag forming shape: Pillow bag, stand-up bag, gusset bag etc.

Bag size: L: 100-325mm; W: 100-220mm

Filling range: 15~2000g

Packing speed: 25-40 bags/min

Control method: Touch screen control

Air Supply: 0.4m3/min, 0.8MPa

Power supply: 380V, 50HZ, three phase four wire

Gross power: 5.6KW

Thermal fuse power: 1.3KW

Machine dimension : 4200*1800*3360mm(L*W*H)

Machine weight: 1500KGS
