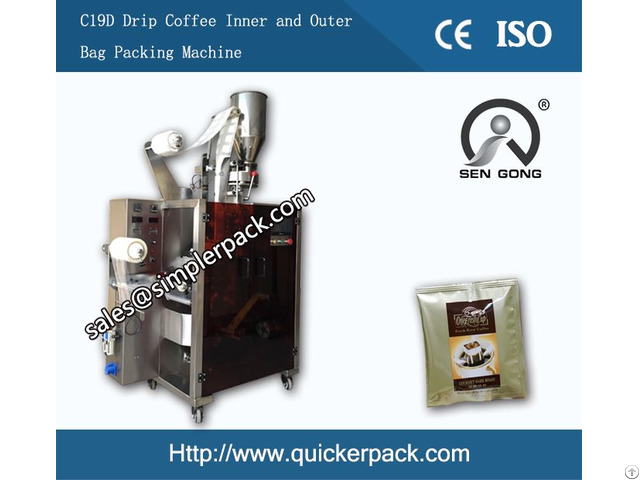

Dirp Coffee Bag Packing Machine By Ultrasonic Sealing - China

Brief Introduction:

1) Automatic one-off finished packaging machine;

2) Coffee powder/Ground coffee;

3) Ultrasonic sealing;

4) Inner drip bag; Filter paper; with outer envelop;

5) Cost effective.

6) All-round process: filing, weighting, bag forming, sealing, cutting and counting etc.

7)International Approval : ISO9001: 2008

8)Quality Approval : Certification of Compliance

9)Experience : 12 Years Manufacturing

Application:

It is suitable for 5 to 15gram drip coffee inner and outer bag packaging.

Features:

1 - Outer bag sealing is controlled by the stepper motor, ensuring accurate and stable bag length positioning.

2 - Adopts PID temperature controller for more accurate temperature adjustment.

3 - Adopts PLC control system and touch screen color monitor device, machine is very easy to operate.

4 - The main machine parts is made of SUS304 stainless steel, so it ensures hygiene products output.

5 - Some cylinders are imported, ensuring the accuracy and stability of the machines’ performance.

6 - It can make the inner and outer bag at the same time automatically, which would highly improve the working efficiency.

7 - Adopts automatic conveyor system.

8 - Options: Date code printer.

Standard Technical Data:

Bag type: Ultrasonic sealing

Packing material: Paper/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Filter paper

Feeding system: Volumetric cup filler

Package range: 5-15g

Inner bag size: L: 50-75mm, W: 50-90mm

Outer bag size: L: 85-120mm, W: 75-100mm

Inner bag film width (180mm): Bag size: L90mm*W75mm

Outer bag film width(200mm): Bag size: L120mm*W100mm

Power supply: Single phase, 220V, 50HZ, 3.7KW

Packing speed: 30-60bags/min

Machine weight: 400KGS

Machine dimension: 1200*900*1900mm (L*W*H)

Packaging Machinery Catalog:

1 - Flat Bag Tea Packaging Machine;

2 - Drip Coffee Packaging Machine;

3 - Triangle Nylon Bag Tea Packaging Machine;

4 - Tea Vacuum Packaging Machine;

5 - Powder Packaging Machine;

6 - Granules Packaging Machine;

7 - Liquid Packaging Machine;

8 - Food Smalls Packaging Machine;

9 - Herbs Packaging Machine;

10 - Pre-made Ziplock Bag Packaging Machine;

11 - Auger Filler Packaging Machine;

12 - Packing Auxiliary Machine;

13 - Packaging Materials.
