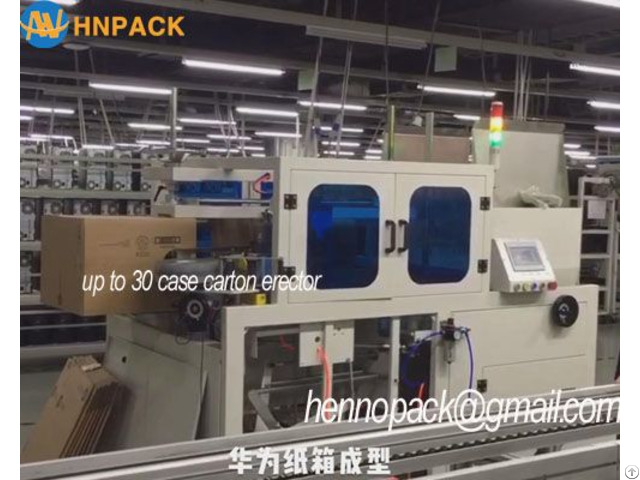

Hennopack Mpk 30k Horizontal Type Case Erector - China

When your automated packaging line demands the fastest possible speeds in case forming, the hennopack horizontal type case erector is the equipment for the job.

This machine runs RSC, HSC, and AFM carton styles at speeds up to 50 cases per minute.

Cases are bottom sealed upright and discharged vertically from the machine.

Speed, reliability, quality.

Fast in operation, fast in changeover.

Speed is also about production changeover.

All adjustments are made quickly and without tools.

Hand wheels and counters ensure quick, repeatable production setups.

Compression mandrels are swapped with a simple pull pin.

Available fully motorized adjustments allow one-touch selection of pre-programmed products from the HMI to automatically perform job changeovers.

Item Parameters

Model MPK-30K

Packing speed 30 ctns/min

Qty supply 1000pcs(1000mm)

Forming method Horizontal molding

Max.

Carton size L510*W350*H400mm

Min.

Carton size L240*W190*H120mm(Minimal size can not appear at the same time)

Power supply 1P/3P 220V/ 380V 750W

Air pressure 6kg/cm3

Air consumption 450NL/min

Adhesive tape width W48mm/60mm

Adhesive tape side length W45-60mm

Case erector table height 900mm

case erecting Machine size L2300*W1210*H1750mm

case forming Machine weight 800kg Security and alerts: 1 - automatic warning reminder to add carton.

2 - absorb cardboard is not successfully alarmed.

3 - Carton unpacking failed to alarm.

4 - The tape sticking is not successfully alarmed.

5 - Alarm when running out of tape.
