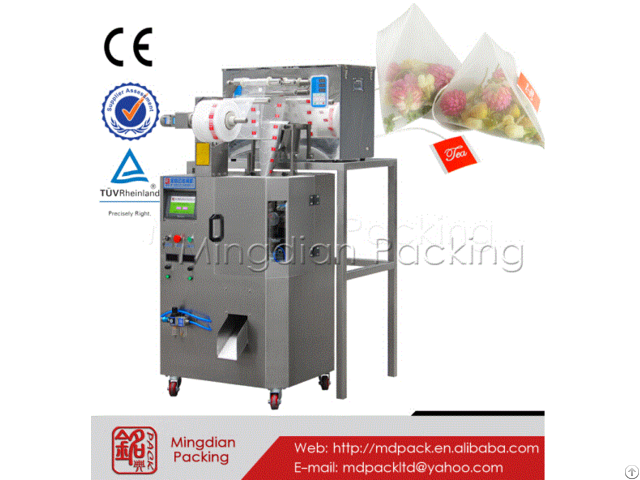

Pyramid Tea Bag Packing Machine - China

Small pouch tea bag packing machine

Application:

This machine is used for pyramid tea packing for loose leaf tea and natural herb tea, such as green tea, black tea, dark tea, yellow tea, white tea, health tea or other small size material.

Features:

Low power consumption &Optimum functionalition & Robust Construction &Two Load Cells For Tea Blending

Technical Advantage:

1 - Can switch from making pyramid bags to flat bags at the push of a button !

2 - Packing Speed: 2000-3000bags/hours !

3 - Nylon film with thread and tag can be used in this machine.

4 - The choice of volume measurement, and electronic scales measuring for different packing content.

Electronic scales measuring is used for single type material, mutil-type material, irregular material or other material which can't be weighing by volume cup.

5 - The whole working cycle logic and quality control are achieved by a PLC.

6 - Operating flexibility through optional adjustment of technical parameters

7 - Main motor overload as safety device, automatic adjustment device of film tension

9 - Having the alarming for bad operation and stop running automatically

Technical Data:

Item

MD-160-02

Packing Speed

40-60Bags/Min(Exact will be determined by packing material)

Filling Precision

≤±2% (determined by packing material )

Bag Size

60-80W*40-80Lmm

Packing Film

120mm, 140mm, 160mm

Sealing Type

Triangular Bags & Rectangular Bags

Filling Range

2-10ml

Film Thickness

0.04-0.06mm

Film Material

Nylon, Polyester net non-woven fabrics,

or other ultrasonic sealing materials, ETC.

Total Power

2.2Kw

Voltage

Single 220V 50HZ

Air Compressor

Less than 1 cube

Air Comsumption

0.6Mpa 0.4m3/min

Rolled Outer Diameter

≤400mm

Diamension

870*1100*1700mm

Diamension of Wooden Case

1180*950*1710mm

After - Sale Service

1 - Technical file service provided

2 - On-site training service provided

3 - Spare parts replacement and repair service provided

Company Information

Sichuan Mingdian Automatic Euipment Co., Ltd. is top supplier of small bag packing machine in China, we have

*20 years experience in packing machinery

*More than 600 sets machine as annual sales

*Good and steady-going quality , reasonable prices

*Can meet customers' different needs

FAQ

Q: What machines do you have ?

A: We have tea bag packing machine, coffee packing machine, powder packing machine, granule packing machine , liquid /paste packing machine and food packing machine and Snack food packing machine

Q: What certification do you have ?

A: ISO-9000 , CE, TUV, GMP

Q.

Do you accept custom design ?

A: Yes !

Q.

Considering voltage difference, do you provide transformer ?

A: Yes !

Q.

If we create our own artwork design, what kind of format will be acceptable?

A: The popular format: AI, JPEG, CDR, PSD, TIF, PDF

Q.

What is your payment and shipping terms ?

A: Payment: T/T, Paypal, Western Union , Escrow

Shipment Terms: EX-W, FOB, CIF, DDU, DDP

Loading Port Will Be Chengdu/Shanghai/ Ningbo/Shenzhen/Guangzhou

3-7 days delivery time by DHL/UPS/FEDEX/TNT

5-10 days delivery time by air .

20-35 days delivery time by sea .
