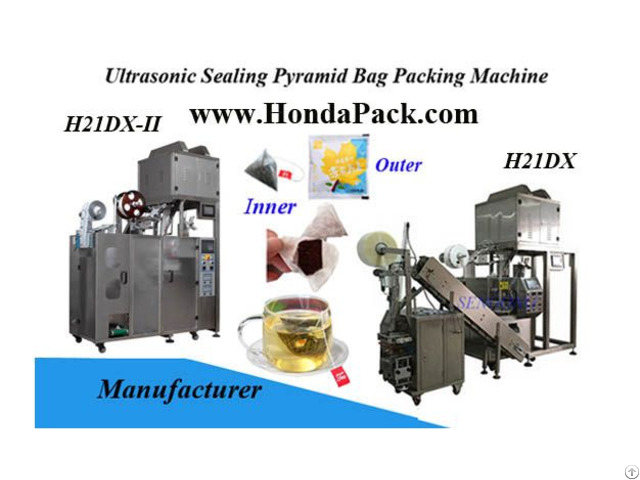

Ultrasonic Nylon Tea Bag Packing Machine - China

Ultrasonic Nylon Tea Bag Packing Machine is suitable for inner pyramid bag with outer envelope, and for packing multi-material product such as loose leaf tea, herbal tea, health care tea, TieGuanYin, Longjing, DaMaoFeng, DaHongPao, Rose tea, Ginseng, etc.

Feature:

1 - It can make inner and outer bag automatically, which would highly improve the working efficiency.

2 - Adopts PLC control system, touch screen color monitor device, machine is very easy to operate.

3 - Adopt ultrasonic sealing method, and it can seal tightly, safely, and reduce the width of extra edge, avoiding any waste of packing material.

4 - All parts in direct contact with products are made of SUS304 stainless steel, ensuring reliable products output conforming to GMP standard.

5 - The packing material of triangle bag is nylon, non-woven fabric material imported from japan, and it is non-toxic, no bacteria, heat-resistant high quality food grade material.

6 - The machine adopt ultrasonic sealing method, and it can seal tightly, safely, and reduce the width of extra edge, avoiding any waste of packing material.

7 - Optional devices: date printer, nitrogen gas generator, etc.

Standard Technical Data:

Type: Tea Bag Packing Machine Series

Product model: H21DX-2

Product name: Automatic Pyramid Tea Bag Packing Machine with outer envelope Packing Material: Inner Bag: Nylon mesh; Non-woven fabric; PET; PLA; 100% biodegradable transparent material.

Outer Bag: Kraft paper/aluminum coating; PE/aluminum coating; PE film

Filling range: 1~10g/bag, accuracy: ≦±0.1g/bag


Filling method: Electric scale

Packing roll width: 140mm, 160mm, 180mm

Sealing length: 50, 60, 70, 80mm

Outer bag size W: 80-100mm; L: 90-120mm

Sealing method: Inner Pyramid Bag by ultrasonic sealing and cutting

Bag type: Inner pyramid bag with outer envelope

Quantity of sealing device: 2 sets

Packing speed: 35-55 bags/min

Power: Single phase, 220V, 50HZ, 1.5KW

Air supply: ≧0.6Mpa (Can be equipped with air compressor)

Weight: 550KG

Dimension: 3000*900*2300mm(L*W*H)

Company Contact:

• Posted By: Xiamen HondaPack

• Phone: +8659255234119

• Address: Tianfeng Road, North Industrial Zone, Jimei District, Xiamen, Fujian, China., Xiamen, China, Fujian , China

• Email:

• Website: http://www.hondapack.com

• Business Description: Xiamen HondaPack is Pyramid tea bag packing machine Manufacturer and Drip Coffee Packaging machine Suppliers.

  Xiamen HondaPack is a leading designer and manufacturer for packing machinery.

  With decades of unremitting efforts, we have developed a series of more flexible, more stable, more user-friendly packing machine such as triangle nylon tea bag packing machine, flat tea bag packing machine, ultrasonic drip coffee packing machine, heat sealing drip coffee bag packing machine,

  stick packing machine, horizontal wrapping machine,fill and seal machine, etc.
