Automatic Twin Wire Binding Machine Pbw580 With Hole Punching - China

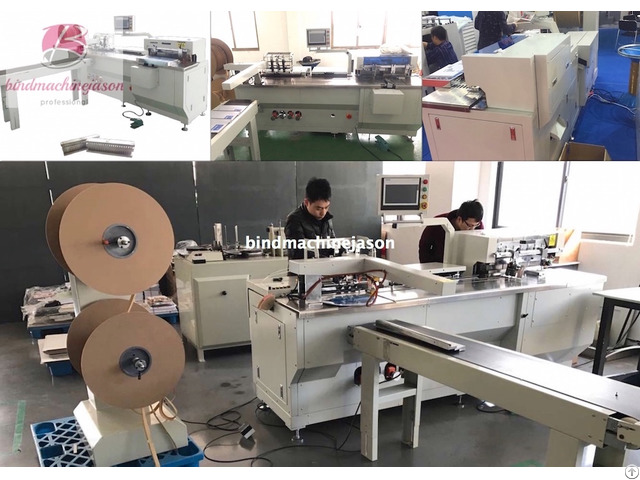

Automatic twin wire binding machine PBW580 with hole punching

Twin wire binding machine and hole punching inline PBW580​ Description:

PBW580 twi wire binding machine include two function, twin wire binding function and paper hole punching function, total 3 actions, notebook feeder, punch, then push finger catch punched notebook to twin wire binding part, then close wire o, final be deliver to conveyor.

Or calendar feeder, punch, then push finger catched calendar to wire bind part, then drop hanger, final be deliver to conveyor.

Notebook : Stacker → Punching → Hanger → Closing → Delivery Conveyor

Calendar: Stacker → Punching → Closing → Delivery Conveyor Machine Technical data:

speed 600-1500 production/hour

Air pressure 5-8 kgf

Wire o diameter 1/4-3/4

Max size of paper 580mm x 800mm

Min size of paper 120mm x 105mm

Max punch thickness 5 times total 15mm

Electric power 3ph 380

Max punch edge size 580mm

Max bind edge size 580mm

Machine advantage:

1 - It combines auto punching and binding in one machine to save labour cost and improve production effciency 2 - One machine could handle notebook, desk calendar, calendar bind and punch work

3 - Not only one machine do bind and punch, could be use seperate do bind or seperate do punch.

4 - Auto collect production and could be set in touch screen for numbers books finished then move

5 - If customer choose hanger device, could be do straight hanger and auto drop.

6 - Complete Punch mould include two small punch moulds, and small punching moulds could change position.

Company Contact:

• Posted By: Ningbo Creative Automatic Co.,Ltd

• Phone: 8657456667189

• Address: NO.51Xiufeng Road Gaoqiao Industrial , Ningbo , Zhejiang , China

• Email:

• Website: https://www.bindmachinejason.com

• Business Description: Ningbo Creative Automatic or “Creative” is the creator and only manufacturer of wire o bind machine and punch equipment.

  Beyond 14 years manufacure experience , we developed wide rage wire o finished machine.

  Now we are the leading manufacture for provider double o, twin loop wire , twin ring, wire o, double wire area machines in china.

  Punch & Bind Equipment

  Creative designs, manufactures and sells a wide range of professional punching and binding equipment.

  In wire bind area, we could provider 3 machines for notebook, desk calendar, calendar.

  In hole punch area, we could provider manual punch, auto punch do loose leaf, autopunch do paper, calendar, cardboard.

  In wire o material area, we could provider you wire forming machine, Even in Spiral area, we could provider you spiral bind machine with final lock.
