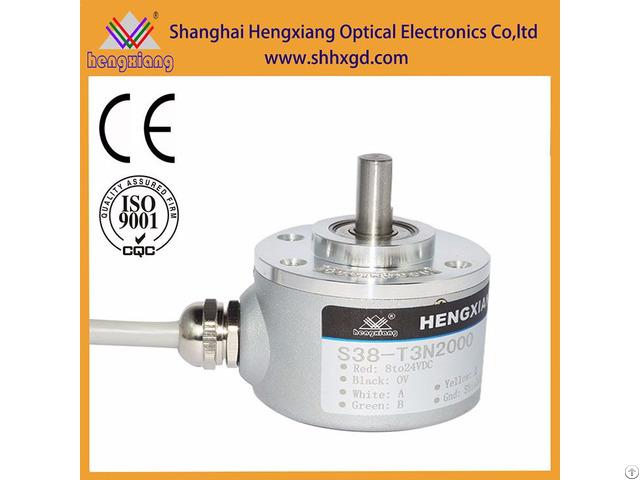

Hengxiang S38 Solid Encoder With Diameter 38mm Shaft 6mm 2048ppr - China
price: 20.00 Dollar US$
S38- Series Specification
Items HENGXIANG S38 rotary encoder potentiometer dc8-24v Voltage output
External dimensions External diameter: 38mm
Thickness: 28mm
Shaft diameter: 5mm/6mm
Resolution 50;60;100;200;250;256;300 ;360;400;450;500;512;600;
700;720;800;900;1000;1 024;1200;2000;2048;2500;5 000
8192;10000;16384;
Output phase Phase A, B, Z or A B Z antipole
Supply voltage DC5V & DC8-30V
Outlettype Cable out from side (with metal sleeve)
Cable out from back (for blind hole type only)
Output mode Collector open circuit output
Voltage output
Push-pull output
Difference output Long line drive (26LS31)
Compatible RS422
Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Shell Aluminium
package Carton box
Net weight About 120g (with package)
Certification CE/ISO9001
Company Contact:
- Posted By: HENGXIANG encoder factory
- Phone: 021-54613487-8019
- Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang,Shanghai, songjiang , Shanghai , China
- Email:
- Website: https://www.shhxgd.com
Published date: October 28, 2016
- Business Description: Hengxiang encoder factory,
Which can offer solid shaft, hollow shaft, incremental encoder, absolute encoder, quasi-sinusoidal encoder, etc.
Revolution can up to 48000ppr.
Max motor speed 24000rpm.
