Hengxiang S58 Series Cnc Machinery Encoder Manufacturer With Diameter 58mm Solid Shaft 10mm - China

price: 50.00 Dollar US$

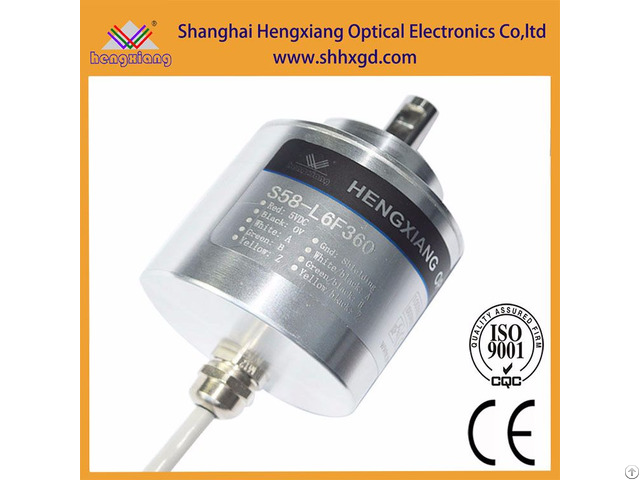

Hengxiang S58 Series Cnc Machinery Encoder Manufacturer With Diameter 58mm Solid Shaft 10mm

Products Photos Catalog Hengxiang S58 Cnc Photos Catalog

1) Advantages 1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control S58- Series Encoder Specification Brand: HENGXIANG

External dimensions: External diameter: 58mm

Thickness: 46mm

Shaft diameter: 8mm/10mm

Resolution: 50;60;100;2 00;250;256;300;360;400;50 0;512;600;700;720;800;900 ;1000;1024;1200;2000;2048 ;2500;50008192;10000;1152 0;16384;20000;23040

Output phase: Phase A, B, Z, A-, B-, Z-

Supply voltage: DC5V & DC8-30V

Outlettype: Cable out from side;Socket out from back

Output mode: Collector open circuit output(NPN &PNP);Voltage output;Push-pull output;Line drive (26LS31);Line drive (RT7272);Line drive (Compatible RS422)

Environmental temperature:

Operating temperature: -20~+80° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity Operating and storage: 35~85%RH (non-condensing) Protection grade: IP50 & IP65

Cable length: 1000mm Shell: Aluminium

Package: Carton box

Net weight: About 420g (with package)

Certification: CE


Company Contact:


  • Phone: 021-54613487-8019

  • Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang,Shanghai, songjiang , Shanghai , China

  • Email: Email


Published date: May 21, 2017

  • Business Description: Hengxiang encoder factory,

    Which can offer solid shaft, hollow shaft, incremental encoder, absolute encoder, quasi-sinusoidal encoder, etc.

    Revolution can up to 48000ppr.

    Max motor speed 24000rpm.
