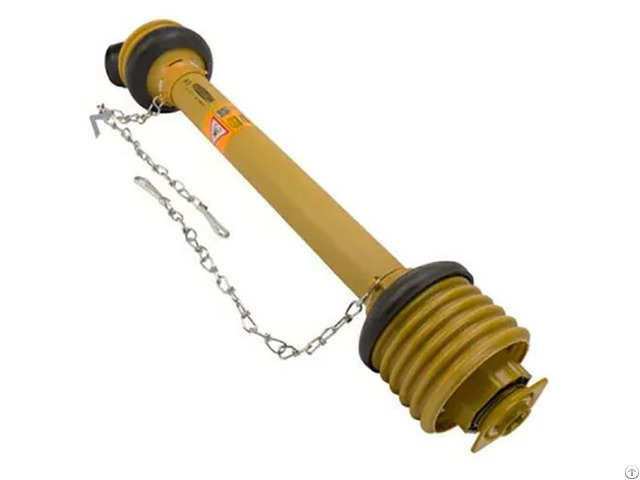

W 2200 series PTO Shaft Replacement of Walterscheid

The frequency of lubrication varies ranges from 50-100 hours

Meeting the requirements set out in EC 993/392 EEC

Fully compliant with EN12965 safety standard

CE mark available

Max.

dynamic capacity of 540 RPM: 20 kW 335 Nm

Max.

dynamic capacity, 1, 000 RPM: 31 kW 295 Nm

Values at 5deg angle at work and service life of 1000 hours

Specifications Of W 2200 Series PTO shaft

Connection outside diameter on tractor side 1 3/8 Inch

Connector number of splines/grooves on the tractor side 6

It consists of Pto shaft with slip clutch and shield K32B (60 daNm)

Declaration of conformity

Instruction manual

Type of locking on tractor side Collar lock

Attachment side of tractor Quick unhook yoke

Connection O machine side 1 3/8 Inch

The number of connections for splines/grooves is determined by the machine side 6

Type of locking is locked by machine side Collar lock

Attachment machine side Radial pin clutch

Size code W2200

Length 710 mm

Power per 540 rpm 20 kW

Power per 1000 rpm 31 kW

Capsular diameter for the cross-joint on the tractor side 24 millimeters

The length of the cross joint on the tractor side.

61 millimeters

Cap diameter for cross-joints side 24 millimeters

Cross joint length machine side 61 millimeters

Clutch type K32B

Max torque for clutches 600 N*m

Outer tube profile 1

Wall thickness of the tube's outer wall 3 mm

Outside tube large outside diameter 48 millimeters

Profile of the inner tube Ov

Wall thickness of the inner tube 4 millimeters

Large diameter outside of the tube 40 millimeters

Shape of the profile tube Lemon Max static torque 1850 N*m

Parts of the Tractor's PTO Shaft, and Replacement Parts

A tractor's PTO shaft When you're seeking a complete set we've got you covered.

We provide a variety of Italian and North American designed PTO driveshafts that are in dimensions and the spline configuration that you require.

CV PTO Assemblies This CV (Constant Velocity) PTO shaft is utilized with all tractor and equipment.

These devices help to balance the power input and PTO shaft power of the tractor in order to give greater stability when they are engaged.

Cross and Bearing Kit: The Cross and Bearing Kit is the universal joint which forms the core of the PTO driveshaft system.

This is the source where power is distributed from PTO component to equipment connected.

Half-Shaft Assemblies We have a large selection of both 48" as well as 60" Weasler Axle PTO assemblies.

The shaft's center and end length assemblies are offered in rectangular and square designs.

Extra Components In the event that your PTO shaft components start showing signs of wear, you can save the cost of new parts by replacing each component.

We offer a wide selection of new guards and bearings, both outer and inner tube pins, yokes as well as universal clutches.
