Four Color Stack Type Flexo Printing Machine - China

price: 30000.00 Dollar US$

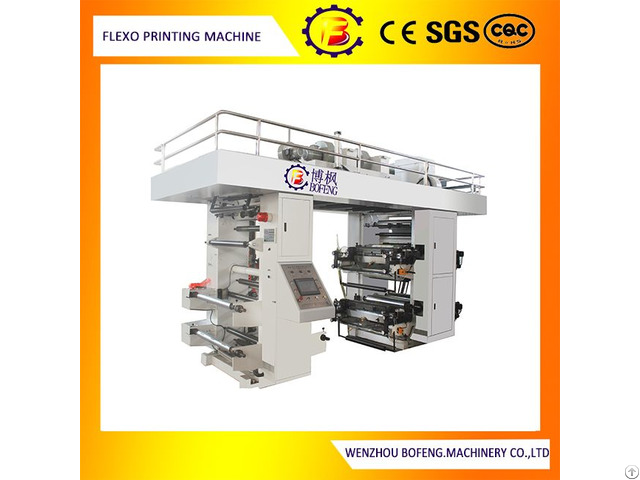

Four Color Stack Type Flexo Printing Machine

Products Photos Catalog Stack Flexo Printing Photos Catalog

Printing Material： paper/plastic film bag

Machine color： 4 Color

Max.

Material width： 1000mm

Max.

Printing width： 960mm

Max.

printing length 30mm~1000mm

Max.

Machine speed： 110m/min

Printing speed： 10-100m/min

Plate thickness： 1.7mmor others Double tap thickness： 0.38mm

Machine outside： 6m(L)×2.2m(W)×2.6m(H)

Machine total power： 30Kw

Voltage： Voltage 380V, 3 PH, 50 Hz

Max.

single unwind diameter Φ1000mm

Unwind Way Single unwind

Alarm device when off material Automatic keep tension when machine stop; Avoid material loose EPC System for unwind Auto tension 1 set

Unwind material holder By air shaft 3’, 1 pcs

Unwind web cylinder Φ76mm (inner diameter) Traction Unit:

Constitution of Traction Aluminum roller

Traction Zones 2 Zones, unwind and rewind

Bearing NSK One direction bearing NSK Printing Unit: ：

Machine Color 4color

Principle of Work Synchronous Belt Drive

Suitable Printing Ink Water-based ink or Oil-based ink Material of Plate Resin Anilox roller Ceramic anilox roller, 4pcs Ink motor Independent ink motor, 90w / 4pcs

Printing Pressure Mechanical adjust

Color register type Manual

Printing plate lifting system： Pneumatic Heating and Drying Unit: ：

Power of Heating 20kw Single Rewind Unit：

Max.

single rewind diameter Φ1000mm

Tension control system Automatic tension control 1pcs

Rewind material holder By air shaft 3’’, 1pcs

Rewind motor 1.5Kw

Rewind web cylinder Φ76mm (inner diameter) Main Purchased part

01 Contact SCHINEIDER

02 Electric-thermal Couple SCHINEIDER

03Switch SCHINEIDER

04 Frequency converter： DELTA

05 Auto Tension Control CHINA

06 Main Motor DPG

14 Edge Position Control CHINA


Company Contact:


  • Phone: 13372476737

  • Address: No. 388 Huashun Road, Feiyun New Area, Feiyun Street, Ruian City, Wenzhou, Zhejiang, China, Ruian , Zhejiang , China

  • Email: Email


Published date: October 14, 2019

  • Business Description: flexographic printing presses, scutters, crosscutting machines, non-standard customized equipment and other high-end special equipment.

    The company takes the high-end technology research and development, creates the core technical team as the enterprise core competitive power, develops with the foreign advanced automation equipment direct competition as the enterprise development goal, has gradually become the domestic packing, the printing, the high-end specialized equipment industry new sharp
