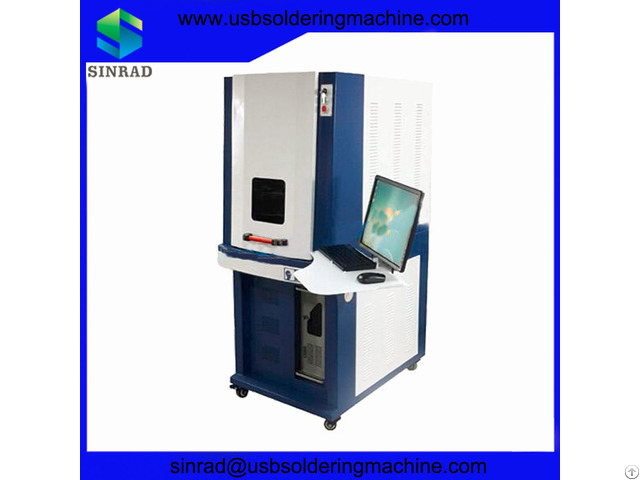

New Coming Uv Laser Marking Machine - China

Introduction

UV laser marking machine takes 355nm pumped purple light laser device as the light source and take advantage of previous generations machine to gain smaller diameter of focusing spot and fine marking effect.

The metal absorb purple light higher than infrared and therefore more suitable for marking on metal and glass materials compared with infrared pump machine.

Narrower pulse width of laser makes a shorter time of processing on materials, thus the materials avoid being deformed or burnt due to thermal.

With smaller heat affected area and more beautiful marking effect, our products can meet customer’s demand of higher marking requirements.

Technical Parameters of 355nm UV Laser Marking Machine

Model DMU-3W/5W

DMU-8W/10W

Laser wavelength 355nm

Laser output power 3W/5W 8W/10W

Beam quality <1.1 <1.3

Marking speed 400 characters per second 500 characters per second

Repeated accuracy ±0.001mm

Working area 110×110mm or 180×180mm ( adjustable )

Machine power 800W 1200W

Power supply 380V/50-60Hz or 220V/50-60Hz

Minimum character 0.1mm

Minimum line width 0.015mm

Positioning accuracy 0.01mm

Working life over 100, 000 hours

Cooling system Air Cooling

Features

Features of UV Laser Marker

1 - Adopting doubling technique of intracavity frequency has greatly improve the stability of laser.

Design on laser cavity adopts a series of optimization method, so as to ensure the beam quality as the fundamental mode.

2 - The machine takes 355nm pumped purple light laser device as the light source.

Narrower pulse width and smaller heat affection contribute to generate peak power.

3 - Higher pulse stability, namely better pulse consistency of laser produces the same carving effect, so it’s very suitable for precision marking.

Higher pulse repetition frequency meets the need of quick marking and high production efficiency.

4 - High efficiency of the photoelectric conversion and long service life.

5 - Automatic in a rotary table (optional item), convenient feeding, fast speed, high efficiency.

6 - It can support logos and graphs designed in DXF format from Auto-CAD, PLT, BMF, AI, JPG, etc.

7 - It can mark date, bar code and two-dimension code automatically.

8 - Superior performance, good stability, high conversion rate and low energy consumption.
