Wire Binding Equipment Pbw580 Inline With Hole Punching - China

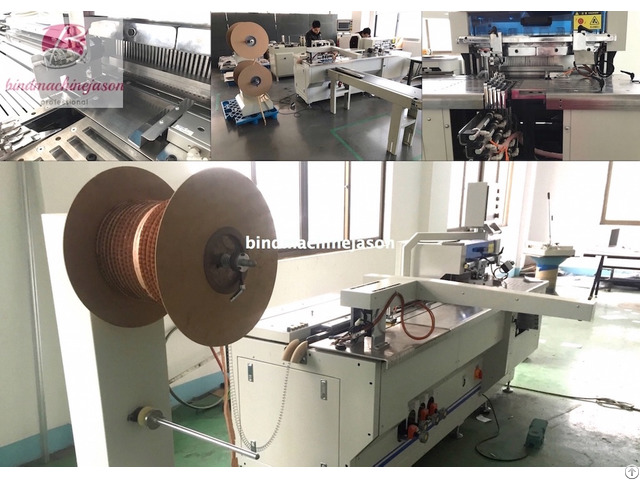

wire binding equipment PBW580 inline with hole punching wire binding equipment and hole punching inline PBW580​ Description: PBW580 wire binding equipment include two function, wire binding function and paper hole punching function, total 3 actions, notebook feeder, punch, then push finger catch punched notebook to wire binding part, then close wire o, final be deliver to conveyor.

Or calendar feeder, punch, then push finger catched calendar to wire bind part, then drop hanger, final be deliver to conveyor.

Notebook : Stacker → Punching → Hanger → Closing → Delivery Conveyor

Calendar: Stacker → Punching → Closing → Delivery Conveyor Machine Technical data:

speed 600-1500 production/hour

Air pressure 5-8 kgf

Wire o diameter 1/4-3/4

Max size of paper 580mm x 800mm

Min size of paper 120mm x 105mm

Max punch thickness 5 times total 15mm

Electric power 3ph 380

Max punch edge size 580mm

Max bind edge size 580mm

Machine advantage:

1 - It combines auto punching and binding in one machine to save labour cost and improve production effciency 2 - One machine could handle notebook, desk calendar, calendar bind and punch work

3 - Not only one machine do bind and punch, could be use seperate do bind or seperate do punch.

4 - Auto collect production and could be set in touch screen for numbers books finished then move

5 - If customer choose hanger device, could be do straight hanger and auto drop.

6 - Complete Punch mould include two small punch moulds, and small punching moulds could change position.

If you take interesting or still have questions, send me email, so easy.
