Dw100 Wide Rapier Loom - China

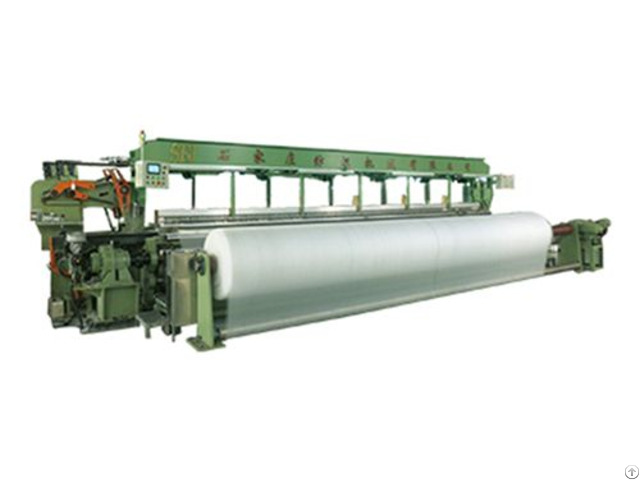

DW100 Wide Rapier Loom

common forming fabric polyester fabric loom

Air Slide Belt Loom

This machine is mainly suitable for weaving paper-making woven press felt, filter clothused in mine, wide geotextile, wideglass fiber cloth, such as wide canvas fabric.

1, Range of weft wires and warp wires: Ply monofilament, ply yarn, glass fiber, wire mesh and other wires

2, Fabric Weight: 800g-1000g/㎡

3, Reed Width: 5000-13000mm

4, Designed Speed: 45rpm.

5, PLC control Air Slide Belt Loom Power: about 15kw.

6, Beating-up Force: Not less than 1000kg/m

1, The main wallboard: adopting iron box structure, the complete machine installed on the basement.

2, Main Drive: Adopting bilateral motor and pneumatic clutch two-sided coaxial drive.

3, Shedding: Single side -drawing dobby, 10 pieces of heald frames.

4, Weft Insertion: Servo motor drive, rapier insertion.

5, Beating-up: Multi-segment combined crank four-linkage weft beating.

6, Take up Mechanism: Servo motor drive, three rollers positive take up.

7, Let off: Servo motor drive, single warp beam let off.

8, Fabric Rolling : cylinder drive, external fabric rolling system.

9, Lubrication system: The complete machine is lubricated with automatic grease lubrication and hand pump centralized oil lubrication.

10, integral fire retardant core Loom Controlling System: With OMRON PLC computer control system, the complete machine can freely set up various parameters and automatically display faults.

More information please view here.

Company Contact:

• Posted By: Shijiazhuang Textile Machinery Co., Ltd.

• Phone: 031183817104

• Address: No 9, Taibao road ,xinhua district ,shijaizhuang ,China, shijaizhuang , hebei , China

• Email:

• Website: https://www.engineeringfabricloom.com/

• Business Description: Shijiazhuang Textile Machinery Co., Ltd. is a high-tech enterprise specializing in R&D, manufacturing and sales of special looms for industrial textile.

  It is headquartered in the capital of Hebei ProvinceShijiazhuang (No.

  9, Taibao Road), covers an area of about 80,000m2, is the base of special loom manufacture for domestic industrial textiles.

  Our company has four serieswide heavy polyester mesh loom, multi-layer belt fabric loom for industrial and mineral industry and ultra-wide geotextile loom for industrial textile in more than 100 varieties.

  Our products are widely applied to industrial textile such as paper machine clothing, filter screen, press fabric, carcass of conveyor belt used in coal mine , powder conveyor belt, brake lining, felt, geotextile, framework material, etc.

  Our products account for more than 85% of market share in China and are exported to South Asia, South America, etc.

  Many of our products have been listed into National Key New Product Plan, National Sci-tech Support Plan (National Program for Tackling Key Problems), Industrialization Project of Special Loom for Industrial Textile of National Development and Reform Commission, Shijiazhuang Key Science and Technology Project and Hebei Scientific and Technological Invention Prize.

  Our company is National Key Textile Machinery Enterprise, and Vice Chairman of China Textile Machinery Association and Hebei Industrial Textile Association.

  Our company has been awarded Hebei High-tech Enterprise, Shijiazhuang Enterprise Technology Center, and Shijiazhuang Weaving Machinery Engineering Research Center, owns a technology R&D team consisting of more than 100 people, the domestic and international advanced CNC production line and solid technical strength, and it Provides strong technical support for the development and manufacture of special looms in industrial textile.

  In the business philosophy of Create the Excellent National Brand of World-class Special Loom for Industrial Textile, our company is devoted to technical innovation of looms for industrial textile, and improves the weaving efficiency and application scope, so as to realize the industrialization of scientific research achievements and fill in domestic blank and promotes the rapid development of ultra-wide and super-thick industrial textile.
