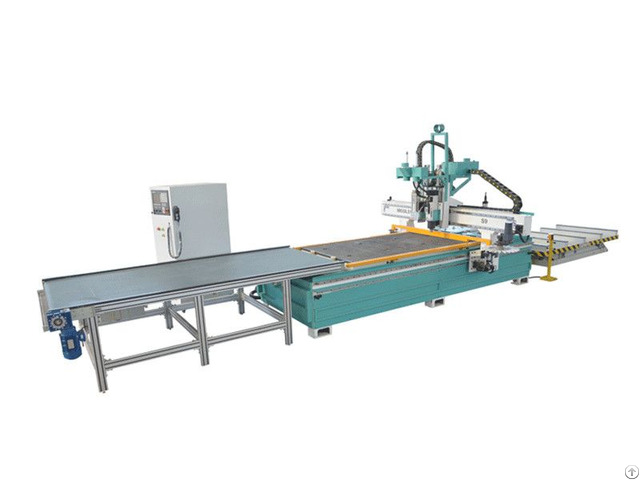

CNC Nested Based Router Missile-S9

MISSILE-S9 Product Parameters

XYZ working area 1300*2500*200mm

XYZ Traveing Positioning Accuracy ±0.05mm

XYZ Repositioning Accuracy ±0.05mm

Table Surfce Vacuum table

Max.

Traveling Speed 60000mm/min

Max.

Working Speed 25000mm/min

Spindle Power HSD Air-cooling 9KW

Drive&Motor YASKAWA servo

Tool Storage Capacity 12

Drilling Capacity 9

Working Voltage AC380V/50Hz/3PH

Operating System Syntec Control System CNC Nested Router MISSILE-S9 Features

S9 is professional machine for panel furniture production .

It is equipped with 9KW ATC Spindle( 12 carousel magazine ) ; Italy FAM 5+4 boring heads which can meet all kind vertical holes drilling ‘s requirements .

S9 has multifunction : routing, drilling, cutting, edge chamfering etc.

S9 is CNC Router Best in China, also with automatic push function which can push the finished panel board from the worktable and collect the dusts during working at the same time .

In this way, it is very easier for the operator to unload the panel board and new feeding board easily be strong sucked on the worktable.

Automatic loading snd unloading system, Automatic marking label system, also can be optional.
