High precision CNC Auto tools changer cnc router machine R1325ATCE Features:

1 - Whole steel seamless welded stricture with strong bearing strength and small deformation, Taiwan linear guide rail square, high precision and wear resistance, all axis dust cover to keep rails clean.

2 - Carousel type CNC auto tools changer, fast speed, high precision, time saving .

3 - Taiwan Syntec 6MA control system with hand wheel working aid, easy to learn and operate.

4 - Advanced file pre-processing function, help the user to correct the mistakes in the processing documents promptly, and good compatibility with software such as Type3/Artcam/Mastercam/Ca xa etc.

Advanced 3D curve Pre-Sentient Algorithms: line smoothly, ensure the speed and precision of curve working.

5 - Japanese Yaskawa servo motors, working stable, Dust collecting system keep your workshop clean.

6 - All 3 axis equipped with Taiwan TBI ballscrews, it could improve the working precision than rack, suitable for accure work.

Applications:

1 - Wooworking industry: furniture making, living room sofa, bed, dinner table, cabinet, tea table and other woodworking field.

2 - Advertising industry: cutting/engraving/drillin g/photo engraving on wood, MDF, bamboo, plastic, PVC, acrylic, two colors board, metals, stone etc.

3 - Manufacturing industry: engrave, cut, drill, photo engraving on copper, iron and aluminum, alloy, steel etc.

4 - Door making: ideal for processing cabinet doors, wood doors, wood door cutting, wood door artwork engraving, wave boards making, 3d photo engraving, small or large relief works, cylinder materials engraving, table and chair making .

5 - Artwork industry: Figure engraving, character engraving and cutting, name brand making, small gift cutting, souvenirs making, Carving various decoration letters, figures on small windows, fences, wall, etc.

6 - Decoration industry : Acrylic, PVC, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.

Machine reference pictures:

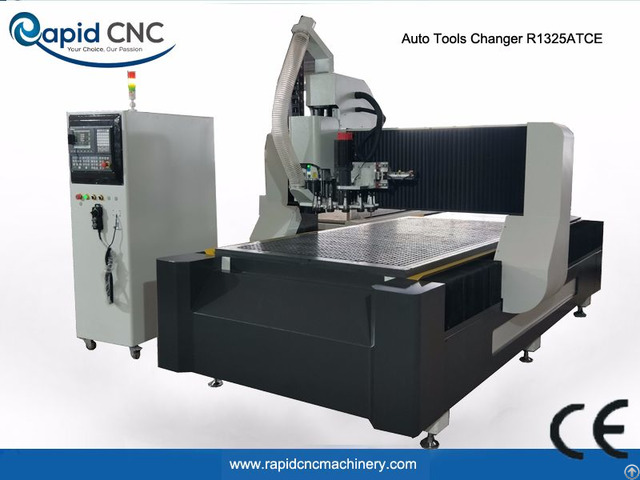

ATC cnc router.

jpg

cnc router.

jpg

Technical parameters:

No

Description

Parameter

1

Working size:

1300x2500x200 mm

2

Table Size:

1950X3600mm

3

Positioning Accuracy:

±0.05/300mm

4

X, Y, Z repositioning Accuracy:

±0.02mm

5

Table Surface:

8 zone Vacuum table

6

Frame:

Heavy steel welded

7

X, Z Structure:

Taiwan TBI square orbits

8

Y Structure:

TBI Rail Linear Bearings and Ball Screw

9

Max.

Power Consumption:

<2000W

10

Max.

Rapid Travel Rate:

60000mm/min

11

Max.

Working Speed:

25000mm/min

12

Spindle Power:

9KW air cooling spindle

13

Spindle Speed:

0-18000RPM

14

Drive Motors:

Japanese Yaskawa sero 15

Working Voltage:

AC380V/50Hz 3PH

16

Command Language:

G-code

17

Operating System:

Taiwan Syntec

18

Computer Interface:

USB

19

Carousel tools 8 station/16station

20

Collet:

ER32

21

Software Compatibility:

Wentai/artcam/type3


Main accessories included: No Item

Qty

1

Data transfer cable 1pcs

2

tools holder

8pcs

3

vacuum pump pipes

1pcs

4

extra belt

3pcs

5

U flash disk

1pcs

6

Type 3 & WENTAI(english version)

1set 7

guarantee card

1pcs

8

eligible certificate

1pcs

9

user manual

1pcs

10

Tools

10pcs

11

collets

4pcs

12

single mouth spanner

2pcs

13

hexangular spanner

3pcs

14

tool case

1pcs

15

electromagnetic switch 1pcs

16

Emergency Button

1pcs

17

Start Button

1pcs

18

Limit switch

2pcs
