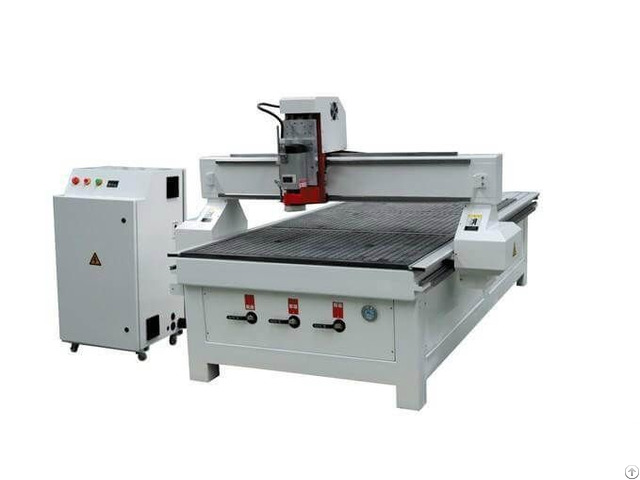

Economic Type Home CNC Router Kit Machine

Main Features:

1).

The Economic Type Home CNC Router Kit Machine has Strong steel structure to guarantee the stable performance and long service time;

2).

High precision linear guide rails and ball screw to guarantee the high precision running.

3).

Modular frame design for different kinds of works, greatly saving energy;.

4).

Advanced file pre-processing functions to ensure speed and accuracy of operation.

5).

Good compatibility with different CAD/CAM software including Type3, Artcam, Castmate, Wentai, etc.

6).

Perfect lubrication system makes maintenance much easier and gives the machine a long life.

https: //www.

cnclaserengraver.

com/product/4x8ft-cnc-plasma-cutting-table-with-affordable-price-for-sale/

Technical parameters

Brand Jeesuncnc

Model JSW-1325E Economic Type Home CNC Router Kit Machine

working area 1300*2500*200mm

Spindle type: water cooled spindle or air cooled spindle

Spindle power 4.5kw

Spindle rotating speed 0-18000rpm

Max moving speed: 35m/min

Max.

working speed: 25m/min

Worktable: Vacuum adsorption table

Locating precision: <0.01mm

Min shaping character: Character: 3x3mm, letter: 2x2mm

Working precision: ±0.05mm

System resolution: ±0.001mm

Control configuration: DSP5.0

Data transfer interface: USB(offline)

System environment: WINDOWS 2000/WINDOWS XP/ windows 7

Spindle cooling way: water cooled or air cooled

Graphic format supported: G code: *.

u00, * mmg, * plt, *.

nc

Compatible software ARTCAM, UCANCAM and other CAD or CAM softwares….

Operating temperature: 5°C-40°C

Working humidity 30%-75%(without condensed water)

Power supply: AC380±10, 50 HZ
