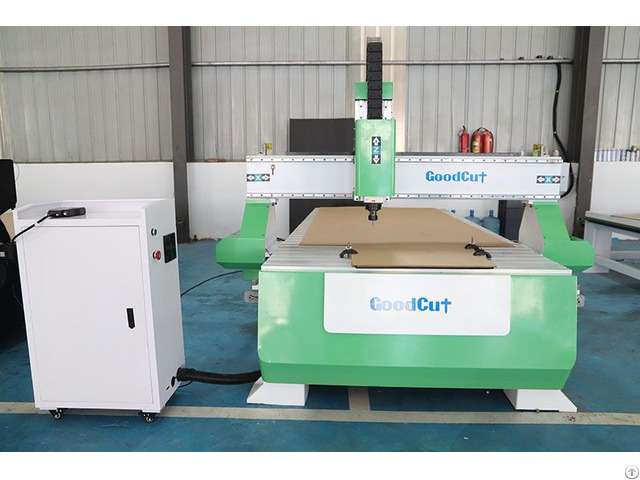

Gc1325 Cnc Router Machine - China

New design

High quality

1300*2500mm working size

Woodworking

Product description: Wood working machine 1300*2500mm working size High quality Good price X, Y, Z Working Area

1.3*2.5m, 1.4*2.5m, 1.5*2.5m etc

Spindle Power

3.2kw water cooling spindle

X, Y, Z Traveling Positioning Accuracy

±0.01/2000mm

Ta ble

T.

slot table

X, Y, Z Rail and Transmission

Taiwan TBI Ball Screw and gear rack

Max.

Rapid Travel Rate

50000mm/min

Max.

Working Speed

30000mm/min

Spindle Speed

24000RPM

Drive Motors

stepper motor and drivers or servo motor and drivers

Working Voltage

AC380V/3PH/50Hz or 220V

Command Language

G Code

Operating System

Nc studio or DSP/Mach3/Syntec

Software Compatibility

Option: Type 3, Ucancam, Artcam, solidworks, etc.

Running Environment

Temperature: 0℃~45℃

Relative Humidity: 30%~75%

Parameters

Standa rd Specifications

Oil system

Handel

Frame structure

Welding structure Feature: *Welded structure by thick profiled steel, stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.

*Double motors and drivers of Y axis ensure steady movement.

*Rack transmission ensures fast speed and high accuracy.

*Imported linear square guide rail ensures high accuracy and maximum work hard.

*Optimized mechanical and electrical design with well-selected brand parts minimizes braekdown rate.

*High power spindle, working vigorously with low noise, guarantees long time massprocessing.

*Function of continuous working at stop point by power failure.

Application:

It is suitable for carving and making of wooden material.

Machines can sculpt all kinds of patterns.

1) Mould: wood, wax, wood, gypsum, foams, wax.

2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

3) The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.

4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
