Hardwood Veneer Peeling Lathe Machine With Servo - China

price: 10000.00 Dollar US$

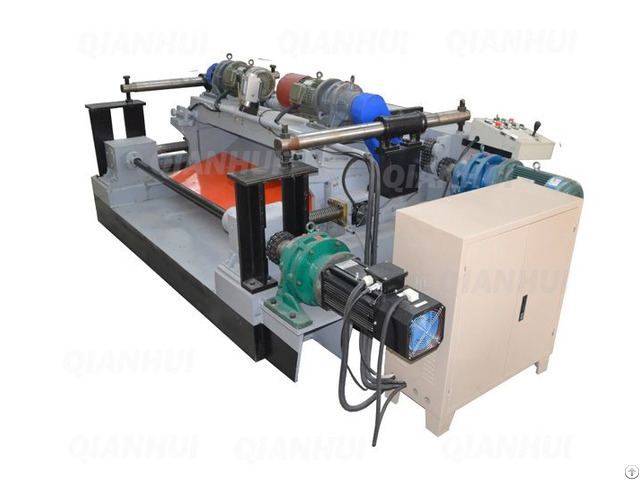

Hardwood Veneer Peeling Lathe Machine With Servo
Technical Specification:
Model No. BX1400A-3 Max Peeling Lathe 1300 mm Max Peeling Diameter 360 mm Left Log Diameter 26 mm Peeling Thickness 0.4-2.8mm Thickness Error ±0.05 mm Peeling Speed 46m/min Knife Size 1400x180x16 mm Roller Diameter 102 mm Roller Motors 4.0kwx2 sets, 5.5kwx1 set Feed Motor 7.5kw servo motorx1 set Control System 11kw Servo Drive Dimension 3500x1900x1350 mm Weight 4500 kg Key Features:
1. Servo System:This veneer lathe is equipped with 7.5kw Servo motor and 11kw Servo Drive Inverter, the control precision is much better than normal motor and normal inverters
2. Heavy Duty:The weight of this veneer lathe is 5300kg, much heavier than other model of machines, so the machines runs very stable, and the peeling precision will be very good, and this makes it suitable for peeling all kinds of hardwood logs
3. Slide pressing bar: There are two slide pressing bars on top of the machine, to press the knife and single roller table, so as to keep them more stable when the machine working, and to keep the high precision
4. Popular in India and Indonesia: we have agent in India and Indonesia, they are selling this model in their countries and the selling is very good, customers think highly of this machine because of its good veneer quality and good machine performance .
5.High Rigidity Rollers:Rollers are quenched and chrome plated, rigidity is better and harder, service life longer .
6. Bearings Well Sealed :All bearings are attached with seals, which makes the bearings better lubricated and can be used for longer time .
The veneer peeling lathe for hardwood are hot selling, our company is a leader in the industry and our wood veneer rotary machinery will not disappoint you.

Company Contact:

  • Phone: 0319-7586599

  • Address: Xingwan Industrial Area, Ren County, Xingtai, Hebei Province, China

  • Email: Email

Published date: April 28, 2019 -

  • Business Description: Mr Jia Yunao, General Manager of Hebei Qianhui Machinery Co., Ltd, once worked for State-owned Renxian Machine Tool Factory. In the year 1999, he rented the workshops from the machine tool factory, and founded Renxian Shuntong Machinery Factory with his partner. Then he started making veneer machines and plywood machines till now. In order to expand business and plant scale, they renamed the plant Hebei Jiushun Machinery Manufacturing Co., Ltd in the year 2007. And in the year 2017, they restructured the plant Hebei Jiushun and Mr Jia Yunao started using the new name Hebei Qianhui Machinery Co., Ltd.
