Panel Saw With Electric Tilting For Woodworking - China
price: 2632.00 Dollar US$

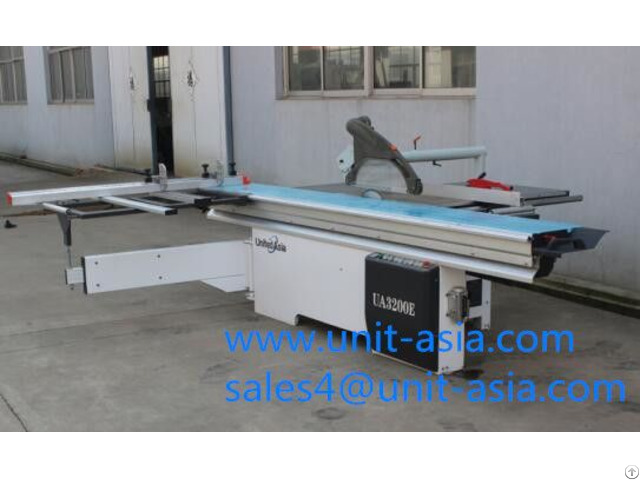

UA3200E Panel Saw With Electric Tilting
TECHNICAL DATA
Dimension of sliding table 3200x415mm
Gross cutting capacity 3200mm
Width of cutting between saw blade and rip fence 1300mm
Main Saw blade diameter 250-350mm
Height of Main saw cutting 70mm
Speed of main saw spindle 6000rpm
Spindle diameter 30mm
Degree of cutting 45°
Main motor 5.5kw
Diameter of scoring saw blade 120mm
Speed of scoring saw spindle 8000rpm
Diameter of Scoring saw spindle 20mm
Scoring motor 1.1KW
Installation Overall size 3050*3500*900mm
Net weight 850kg
Company Contact:
- Posted By: QINGDAO UNITED ASIA INDUSTRY CO.,LTD
- Phone: +8653288222793
- Address: WOODWORKING MACHINERY INDUSTRIAL PARK, QINGDAO, CHINA, Qing Dao, SHANDONG , China
- Email:
Published date: February 27, 2019
- Business Description: Our Group is committed to the design, manufacturing, sales and service of high quality woodworking machinery products.
As the leading professional woodworking machinery manufacturer, our products range including woodworking sawing, edge banding, woodworking drilling, wood planers & jointer, woodworking milling & sharper, cold & Hot presses, sanders, Clamping and Dust collecting equipment.
Now, our products are famous and good reputation in the Chinese market.
