Spindleless Veneer Lathe With Clipper Builtin 2 In One - China
price: 10000.00 Dollar US$

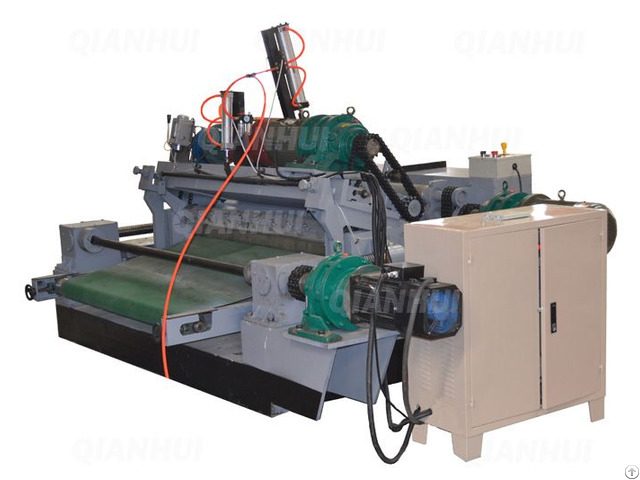

Spindleless Veneer Lathe With Clipper Builtin 2 In One
Technical Specification:
Model No.
BX1400B Max Peeling Lathe 1300 mm Max Peeling Diameter 360 mm Left Log Diameter 26 mm Peeling Thickness 0.4-2.6mm Thickness Error ±0.05 mm Peeling Speed 45m/min Knife Size 1400x180x16 mm Roller Diameter 102 mm Roller Motors 7.5kwx1set, 5.5kw x 1 set Feed Motor 5.5kw motor x 1 set Control System Inverter+PLC Dimension 3500x1900x1350 mm Weight 4000 kg Key Features:
1 - 2 in One: Two functions veneer peeling and veneer clipping combined in one machine, so no need to buy another veneer clipping machine
2 - Save Labor Cost: As the veneer will be directly cutted after peeling, so no need one worker between clipping machine and peeling machine, 3 - Make Full Use of Wood Log: This machine can keep the last piece of veneer full size, lets say, you are peeling and cutting veneer 1270x640, it can make the last piece right size 640 width, so you can will make more profit .
Company Contact:
- Posted By: http://www.worldbid.com
- Phone: 0319-7586599
- Address: Xingwan Industrial Area, Ren County, Xingtai , Hebei Province, China
- Email:
- Website: http://www.qhplywoodmachine.com/
Published date: April 28, 2019
- Business Description: Mr Jia Yunao, General Manager of Hebei Qianhui Machinery Co., Ltd, once worked for State-owned Renxian Machine Tool Factory.
In the year 1999, he rented the workshops from the machine tool factory, and founded Renxian Shuntong Machinery Factory with his partner.
Then he started making veneer machines and plywood machines till now.
In order to expand business and plant scale, they renamed the plant Hebei Jiushun Machinery Manufacturing Co., Ltd in the year 2007 - And in the year 2017, they restructured the plant Hebei Jiushun and Mr Jia Yunao started using the new name Hebei Qianhui Machinery Co., Ltd.
