Tm3000p B Upper Pressure Machine With Pin System Manufacturer China - China

price: contact company for price

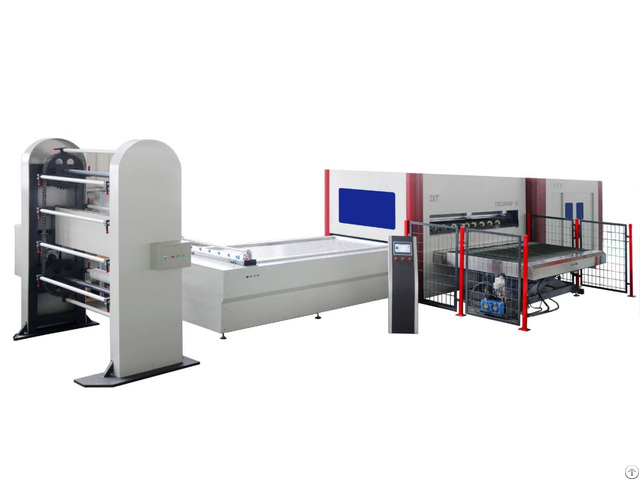

TM3000P-B Upper Pressure Machine With Pin System

Feature

1 - High speed

The working period for making ordinary and high glossy workpieces is less than 2 minutes after it enters the main machine, which is 2-4 times of the efficiency of common positive and negative pressure membrane pressure equipment.

2 - Good effect

The product processed by common film has clear groove, no peeling off at sides, bubbling, no color difference, and high light working surface has strong adhesion, and the effect reaches the international leading level.

3 - Low energy consumption:

The total power of the model is 43KW, which is one half of that of the peer equipment;The main start heating power is 18KW.

4 - High configuration

The key parts of the model adopt original ones from Germany, Japan and Taiwan, which is of high configuration and of stable performance.

5 - High working efficiency:

The whole machine adopts automatic top block device.

Compared with other domestic manufacturers, it saves the technological process of making the pads, the cost of raw materials, saves the sequence of scanning pads, as well as the time of lamination, greatly improves the working efficiency and reduces the labor cost.

6 - High degree of automation

The machine is equipped with automatic tilting rack for fabric selection, automatic film cutting device, automatic gasket device, laminating device of pressing machine, pallet lifting device and finished product rollover collection device, etc., with high degree of automation, it has outstanding features like smooth and close process and one-stop film-covering process production.

The height of the top block can be selected 12, 15 and 18 mm, solving the issue that the high gloss sample blocks are not in place while laminating.

Outline size 13500mm*5500mm*2800mm

Worktable size 3000mm*1270mm

Weight 18T

Total power 43kw

Actual power consumption 18Kw

Maximum processing size 80mm

Voltage 380v 50HZ optional

Rated operating pressure positivepressure‚ȧ0.6Mpa , negativepressure‚Č•-0.095 Mpa Pls contact me WhatsApp: +8615840529588

Wechat: 15840529588 Shenyang Zhanhongtu Machinery & Equipment Co., Ltd

zhtmachinery.


Company Contact:


  • Phone: +8615840529588

  • Address: Qianmo industrial park, Shenyang , Liaoning , China

  • Email: Email


Published date: November 27, 2019

  • Business Description: Shenyang Zhanhongtu Machinery&Equipment Co., Ltd is a professional manufacturer of special-shaped veneer equipment in China.

    At present, the company has more than 100 employees and the plant area reaches 30,000 square meters.

    The equipment covers all parts of China and overseas markets.

    Over the past ten years, Zhanhongtu has been adhering to customer focus and continuous innovation based on market demand, winning respect and trust from industry professionals.

    We established a strong R&D team, it reached world leading level in the research coated effect, energy loss and performance configuration, it launched a series of excellent performance pressing machine, Up to thirty varieties, widely used in all kinds of cabinets blister (membrane pressure cabinet), solid wood veneer cabinet, solid wood composite door, no paint door, board type furniture, profile coated, etc.

    The products have passed the European Union CE certification, and the equipment is exported to Europe, America, southeast Asia, Africa and more countries and regions.

    The high-gloss PVC series press developed by Shenyang Zhanhongtu, and the positive and negative pressure series press machine belong to the top quality of the industry, which brings the unexpected processing effect to the customer group and better meets the customer demand.
