Ww4040a Mini Cnc Router For Wood - China

Product Description

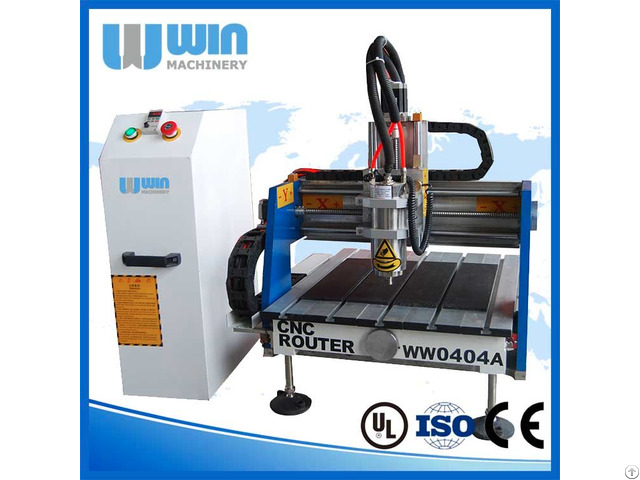

The desktop Gantry Moving Mini CNC Router for Wood is an affordable CNC work platform.

Ideal for any size shop requiring a compact machine to run small routing jobs or to be used as an educational tool.

The desktop Routers features ball screw drives on all three axes and is controlled using a DSP easy-to-use hand-held micro stepper controller.

The controller can run G-Code or dxf file formats.

Product Specification/Models

WW4040A

1 X, Y, Z Working area: 400x400x80 mm

2 Table Size: 420x560 mm

3 Table Surface: T-slot table

4 Frame: Cast Iron Or Cast Aluminum

5 X, Z Structure: Round rails and TBI ball Screw,

6 Y Structure: Ball Screw, Hiwin Rail Linear Bearings, Table moving

7 Max.

Power Consumption (Without spindle): 2.2KW

8 Max.

Rapid Travel Rate: 8000mm/min

9 Max.

Working Speed: 5000mm/min

10 Spindle Power: 0.8kw water cooling spindle

11 Spindle Speed: 0-24000RPM

12 Drive Motors: Stepper system

13 Working Voltage: AC220V/50/60Hz, 1 Phs

14 Command Language: G Code

15 Operating System: DSP System(options: Ncstudio/Mach3 PC Software)

16 Software Compatibility: Type3/UcancameV9 software, (Option: Artcam software)

17 Running Environment Temperature: 0degree - 45 degree

18 Relative Humidity: 30% - 75%

19 Computer interface: USB

20 Flash Memory: 128M(U Disk)

21 X, Y, Z Traveling Positioning Accuracy ±0.01/300mm

22 X, Y, Z Repositioning Accuracy: ±0.01

23 X, Y Resolution <0.01mm

24 Collet: ER16

25 Packing Size: 800X800X800mm

26 N.

W: 85KG

27 G.

W: 110KG

28 Guarantee One year from the date of commission

Application

3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.

Material

Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.

Guarantee & After Sales Service

1 - The CNC Router Machine is guaranteed for 12 months.

2 - Technical support by phone, e-mail or MSN around the clock.

3 - Friendly English version manual and operation video CD disk.
