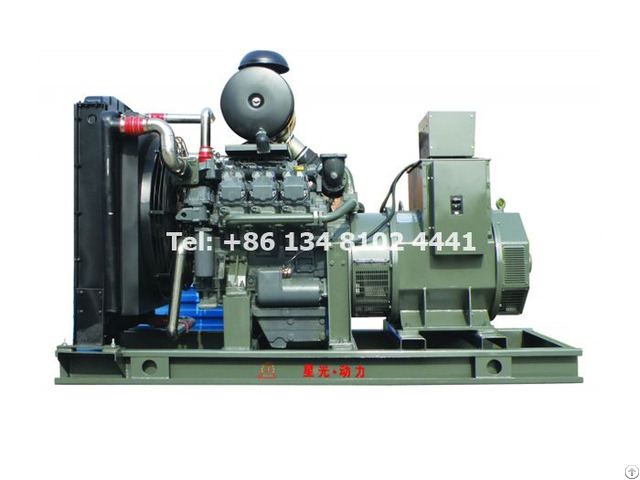

24kw 30kva Deutz Diesel Generator Set - China

Diesel Generator Set Data

Set Type: XG-24GF

Prime Output: 24KW/30KVA

Rated Current: 39(A)

Rated Frequency: 50(Hz)

Start-up time: 5～6(s)

Power Factor: 0.8(Lag)

Rated Voltage: 400/230(V)

Standard Features

1 - Engine: DEUTZ D226B-3D

2 - Radiator 50℃ max

3 - Fans are driven by belt, with safety guard

4 - 24V charge alternator

5 - Dry type air filter, fuel filter, oil filter

6 - Alternator: single bearing alternator

7 - IP23, insulation class H/H

8 - Main line circuit breaker

9 - Standard control panel

10 - Absorber

11 - Muffler

12 - User manual

Diesel Engine Data

Manufacturer: DEUTZ

Model: D226B-3D

Standby Power: 30KW

Rated Speed: 1500(r/min)

Cycle: 4 stroke

Cylinder Arrangement: 3 in line

Displacement: 3.12L

Bore and Stroke: 105*120(mm)

Compression Ratio: 16.0: 1

Governor Type: Mechanical

Start battery voltage: 24V DC

Air Intake System Air Intake System: Naturally aspirated

Max Intake Restriction: 5kpa

Burning Capacity: 2.8m3/min

Air Flow: 34m3/min

Exhaust System Exhaust Gas Flow: 4.78 m3/min

Exhaust Temperature: 435℃

Max Back Pressure: 10kPa

Fuel System

Fuel System: A model fuel pump

100%( Prime Power) Load: 208g/kwh

50%( Prime Power) Load: 223g/kwh Oil System

Total Oil Capacity: 7.25L

Engine Oil Tank Capacity: 15.5L

Cooling System Cooling Way: Water-cooled

Total Coolant Capacity: 15.5L

Thermostat: 95-105℃

Max Water Temperature: 104℃

Alternator Data

Manufacturer: STARLIGHT /STAMFORD /SIEMENS /MARATHON /ENGGA /KEPU

Excitation Mode: Brushless and self- exciting

Number of phase and Access Act: 3-phase 4-wire

Connecting Type: "Y" type connecting

Alternator Capacity: 30KVA

Alternator Efficiencies: 95％

Overload: (PRP)110% load can run 1h

Protection Level: IP22-IP23

Insulation Class, Temperature Rise: H/H

Telephone Influence Factor (TIF): ＜50

THF: ＜2%

Voltage Regulation, Steady State: ≤±1%

Air Cooling Flow: 0.216m3/s

Altitude: ≤1000m

Genset Electrical Performance

Voltage Regulation: ≥±5%

Voltage Regulation, Stead State: ≤±1%

Sudden Voltage Warp (100% Sudden Reduce): ≤+25%

Sudden Voltage Warp (Sudden Increase): ≤-20%

Voltage Stable Time (100% Sudden Reduce): ≤6S

Voltage Stable Time (Sudden Increase): ≤6S

Frequency Regulation, Stead State: ≤5%

Frequency Waving: ≤1.5%

Sudden Frequency Warp (100% SuddenReduce): ≤+12%

Sudden Frequency Warp (Sudden Increase): ≤-10%

Frequency Recovery Time(100% SuddenReduce): ≤5S

Frequency Recovery Time(Sudden Increase): ≤5S

Options

Engine: Alternator

Heater 2KW & 4KW: Anti Condensation Heater

Battery Charger 3.5A & 7A: Permanent Magnet Generator(PMG)

Water Separator: Drop CT(For Paralleling) Daily Fuel Tank

Control System: Others

Remote Control Panel: Rainproof Type

Auto Transfer Switch (ATS): Soundproof Type

Paralleling System: Trailer Type

Open Type

Overall Size: 1730(mm)*750(mm)*1190(mm)

Weight: 640(kg)

Soundproof Type

Overall Size: 2100(mm)*1050(mm)*1900(mm )

Weight: 1200(kg)

Standard Control Panel: Starlight Standard Control Panel uses micro processing technique integrating digital, intelligent and network techniques which can carry out functions including auto start/stop, data measure, alarming.

The controller uses LCD display, optional Chinese and English display interface with operation easy and reliable.

It can be widely used in all types of generator automatic control system for compact structure, advanced circuits, simple connections and high reliability.

Auto Module Control Panel: Auto Module Control Panel is the configuration for nobody on duty controlling generators.

This kind of panel adopts auto module control system, with large LCD display to show the menu.

Features: 6110 can receive remote output signal from ATS and realize auto start and stop of generators.

6310 can realize all functions of 6110, add RS232 interface which can communicate with PC to realize remote operation.

6410 Auto Mains Failure controller, can realize all functions of 6310, furthermore can detect ATS and control directly.

Auto Parallel Control Panel: This new automatic parallel system adopts intelligent modules, inserted and folded installed, no need the peripheral relay and logic circuit.

The main switch adopts electronic breaker or frame breaker, combined together with the generator, which is very reliable.

One generator, one panel.

The panel can be used both for singly and parallel.

It is only need to parallel generator with such panel when the capability needs to be enlarged in the future.
