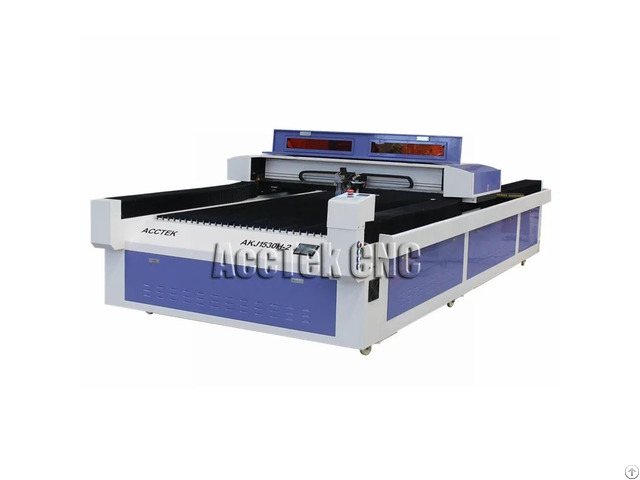

Acctek Co2 Laser Cutting Machinery With Ce Certificate Akj1530h - China

Main Features

1 - Extensive nonmetal material cutting & engraving and metal sheet cutting, smooth cutting edge and burr-free, save free frompolishing, Processing high speed, high precision, less waste, high efficiency, Optional double laser heads cutting machine so that the exponential growth efficiency.

2 - Suitable for small and medium-sized enterprises in the mass production, but also suitable for small enterprises and individual processing.

Operational speed, laser energy real-timeadjustable, and very easy to operate.

3 - AKJ1530H-2 is mainly for large format engraving and cutting.

The new design, mechanical follow-up cutting head system, cutting head always follows the material to keep the cutting point location unchanged, which insures smooth cutting section without processing again.

It can adapt to flat or curved surface sheet cutting.

4 - Imported reflected lens and focus mirrors in the optical system can greatly reduce the heat loss;

5 - High compatibility, applicable for the models like PLT, BMP, DXF, DST steel sheet etc.

Description

Parameter

Working Area

1500*3000mm

Laser medium

CO2

Laser power

600w

Working table

Knife table table

Power Supply

380v/ 220V/50Hz, 110V/60Hz

Min line width

≤0.15mm

Positon accuracy

0.01mm

Repetition accuracy

0.02mm

Cutting speed

150 mm/s

Guide rail

Hiwin from Taiwan

Transmission method

Belt with rail guide

Drive system

Stepper motor and leadshine drive system

Cooling system

Water-cooling

Control system

Ruida 6332M controller

Control software

RDCAM

Graphic format support

PLT, DXF, BMP, JPG, AI, ect

Working environment

0-45℃

Operating Humidity

5-95%

Net Weight

1300KG

Gross weight

1450KG
