Automatic C Purlin Forming Machine - China

price: contact company for price

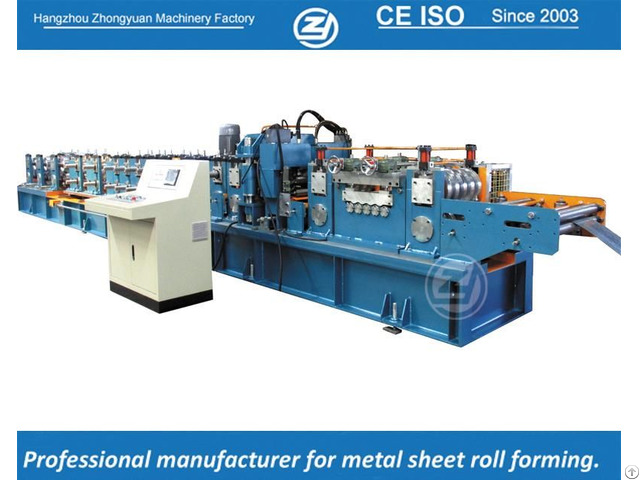

Automatic C Purlin Forming Machine
Technical Data of Automatic C Purlin Forming Machine
Suitable Material Cold-rolled steel strip and heat-treated galvanized steel strip
Thickness of raw material 1.5-3.2mm (235-345Mpa)
Size of C purlin 100-305mm adjustable (special size available)
Material of roller Cr12 mould steel being quenched treatment, HRC58-60
Material of cutter blade& punching die Cr12 mould steel with quenched treatment, HRC58-60
Material of shaft High quality 45# steel with heat treatment.Roller grinder milling.
Power Requirement Main motor power: 4X4 Kw(Depend on final design) Hydraulic station power: 5.5Kw (Depend on final design)
Diameter of shaft for rollers 82mm
Controlling system Mitsubishi PLC & converter
Quantity of rollers about 18 stations for main rollers
Weight of machine About 22000KGS
Size of machine About 17.5mX2.1mx1.6m Roll Forming Machine Gearbox Transmission System
Gearbox transmission system moves the line to ensure machine strong enough to run raw material thickness 3.2mm
Automatic Purlin Roll Forming Machine, Z Purlin Forming Machine, CZ Changeable Purlin Forming Machine For Sale


Company Contact:


  • Phone: 8657182172966

  • Address: No.228, Yongli, Nanyang Street, Xiaoshan District, Hangzhou City, Zhejiang, P. R.of China, Hangzhou, Zhejiang, China

  • Email: Email


Published date: August 18, 2017 -

  • Business Description: Company Information
    Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system.

    Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution.

    We are"All-in-house source" – from raw material to the final high-precision forming machine. Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines.

    Our range of products: sandwich panel production line, roof tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.

    Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania, Ethiopia, Gana, Guinea, South Sudan, Algeria, Niger, Philippines,Indonesia,India, Russia, Azerbaijan and Kazakhstan.

    We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information

    Competitive Advantage
    Zhongyuan is a "All-in-house source" – from raw material to the final high-precision forming machine. All are done in our factory.
    Quality and delivery time can be controlled here.
    1. Our Focus is on our Customers
    We consult with each customer individually, and together develop the best solution for any application. Through this collaboration with our customers we strive to keep the solution effective, cost effective and timely.
    2. With Zhongyuan products you save time and money!
    Zhongyuan is a "All-in-house source" – from raw material to the final high-precision forming machine. We have our precise tooling center. when roll forming machine must be delivered immediately, depending on customer's features, we can manufacture and deliver machine in only 5-8 weeks.
    3. You can Rely on Our Zhongyuan Team!
    The dedicated staff at Zhongyuan is our key to success.
    We have engineers with experience more than 15 years in metal forming industry.
    Employees and their development are of fundamental importance to Zhongyuan.
    4. Quality by Zhongyaun
    Zhongyuan is certified according to the standards ISO 9001:2008 and EN982:2008, EN ISO12100-1:2003, EN ISO 14121-1:2007.
    Our Integrated Management System comprises Quality, Environment, Employment and Health Protection. When it comes to safety, there are no compromises.
