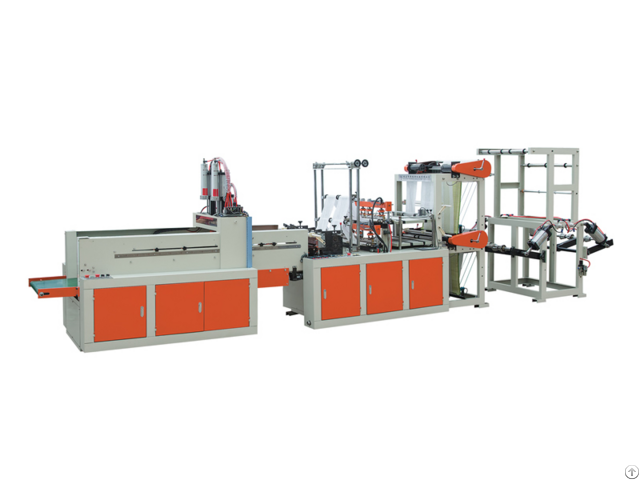

Automatic Double Layer Four Line T Shirt Bag Making Machine - China

Double-layer, Four-line, Bottom Sealing Bag-making Machine has such functions as photoelectric automatic tracking, microcomputer length setting, high limit stopping, automatic counting, automatic alarm on reaching the set value, and high compensation accuracy.

With characteristics such as neat bags, little error, and high automation of the whole machine, it is an ideal equipment for producing blank bags, color bags, flat bags, vest bags, etc., and other various plastic soft packaging bags.

Performance and Features

1 - Fuselage structural design is streamlined.

2 - No material, blocking bags automatically shut down.

3 - Microcomputer control, stepper motor prop material (optional servo motor control system)

4 - The temperature error is small, bag length can be adjusted freely buttons.

5 - Photoelectric tracking, stopping automatically when the label is lost.

6 - Feeding, back cover, cutting, notching, conveying one time.

7 - High degree of automation, good economic returns.

Use: This machine is suitable for white bags, color bags, flat bags, vest bags, etc.

Main Technical Parameters

Model FR-DFR-650C FR-DFR-800C FR-DFR-900C FR-DFR-1000C

Max.

Width 200mm*4 280mm*4 350mm*4 400mm*4

Max.

length 600mm 600mm 600mm 650mm

Photocell 1 1 1 1

Cutting Thickness 0.009-0.020mm 0.009-0.020mm 0.009-0.020mm 0.009-0.020mm

Bag Output 10-150Piece/minute*2 10-150Piece/minute*2 10-150Piece/minute*2 10-150Piece/minute*2

Main Power 1.5kw 1.5kw 1.5kw 1.5kw

Feeding Motor 300w*4 300w*4 300w*4 300w*4

Power supply 50HZ220V+10%-15% 50HZ220V+10%-15% 50HZ220V+10%-15% 50HZ220V+10%-15%

Weight 1200kg 1250kg 1350kg 1400kg

Overall Dimensions 6500×1200×1800(mm) 6500×1400×1800(mm) 6500×1500×1800(mm) 6500×1600×1800(mm)
