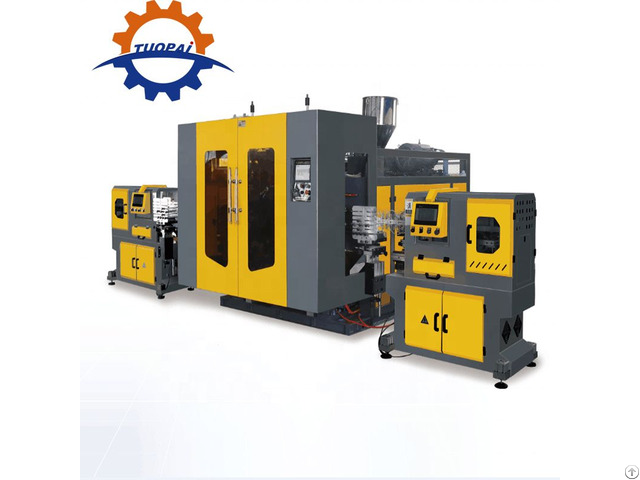

Automatic Extrusion Blow Molding Machine Special For Petg Bottle - China

Application:

This Automatic Blow Molding Machine mainly to use make PETG Materials 10ML-8L capacity cosmetic bottles and sport water kettles

Automatic Single/Double Station Blow Molding Machine special for plastic PETG bottles Feature as below:

1 - Linear guider strip style

2 - With single station or double station

3 - Adopt 1-4 die mold heads

4 - Multi-layers : 1-3 Co-Extrusion Layers

5 - Multi cavities: 1-4 cavities

6 - Production Volume: 10ml-8L

7 - Application Products: PETG Cosmetic bottles or Sport water bottles

8 - Optional Parison controller/Auto Deflasher/Auto material feeding /Auto Recycling/IML(In Mold Labeling)/Leakage detector/Filling/Packing onlined full automatic production.

9 - Energy Saving

Energy savings at least 40% greater than conventional fixed displacement pump systems (The energy-saving effect varies depending on the operation conditions.

)

10 - High Accuracy with Simple Operation

High-Accuracy servo control according to analog pressure (P) / flow rate (Q) voltage commands

11 - Longer life for hydraulic units & O sealings

MOOG Servo motor due to its instant reaction speed, it does not require always running like traditional induction motor, so the hydraulic oil temperature is lower, which protect the hydraulic units and O-rings to use more longer life.

12 - Faster Shipping Adjustment

Simple adjustment to start a trial run on the machine, meaning a shorter adjustment time

13 - Improving the Working Environment

Reduced noise during operation

14 - Exceeds Standard of High Efficiency Motor regulation

Incorporating a motor dedicated to servo-based rotational speed control

Since no induction motor is used, the maximum discharge rate of the pump does not fluctuate depending on the power supply frequency, making it unnecessary to adjust the machines' maximum speed for each shipping destination.

PETG cosmetic Bottle Automatic Blow Molding Machine Advantages

1 - Hydraulic system and valves connections from Japanese Yuken industry.

2 - Computer control system (PLC) Japanese Mitisubishi PLC

Used to control all electrical components and touch screen

3 - Auto-deflashing Unit

Remove extra parts of products automatically and saving your labor cost

4 - Electrical Cabinet

All electric components from famous world brand to ensure the quality and stability

5 - Touch screen

Chinese and English(or other language)

All movement operated by touch screen, Make the process full-automatic

6 - Advanced technical process

All the oil pipes are seamless piple connecting, only our factory use this method, and the oil circulation system design by ourselves, machine run faster, smoother and quieter than other manufacturers.

7 - Oil cooling technical

Our first-class advanced oil cooling technology, also use different material according to our rich experience, make machine speed quickly and long life.

Atomated Single/Double Station Blow Molding Machine Special For Plastic PETG cosmetic bottle or sport water bottle

Application: Dual Station Blow Molding Machine Special For Plastic PETG Bottles
