Automatic Tool Changer 4 Axis Cnc Router - China

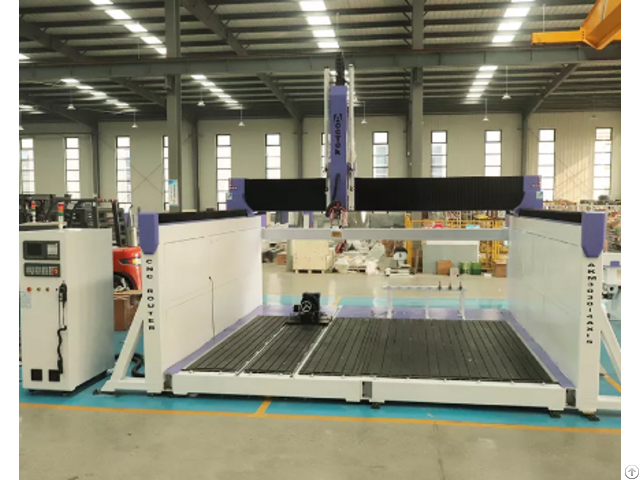

This machine is a customized machine.

The working area is 2000x3000x1000mm.

It is 4 axis atc cnc router.

If you also need a similar machine, you can contact me, we can customize the machine according to your requirements.

Of course, we also have other size machine.

like 1300x2500mm, 1500x3000mm, 2000x3000mm and 2000x4000mm.

etc 4 axis woodworking machine detail psrts

1)9.0kw HQD air cooling atc spindle

Smooth body, not easy to rustpowerful and longer life timeIndependent research and development, rational design.

2)Syntec controller

The system stability is very good, the man-machine operation is friendly, easy to learn and operation, powerful function.

3)Japanese Yaskawa driver and motor

This machine use Japanese Yaskawa servo motor 850w and driver.

Faster speed with signal feedback .

Low heat radiation .

Run smoothly at ultra-low speed.

Reduce the vibration, avoid oscillation.

Efficient torque enhancement.

Wood milling cutter parameter data

Lathe Structure

Seamless welded steel structure, better than cast iron one

X, Y Structure

Rack and pinion, gear drive, Taiwan 25mm square guide rails

Z Structure

Taiwan TBI ball screw, Taiwan 25mm square guide rails

Spindle

9.0kw HQD air cooling atc spindle

Working Mode

Servo

Motor and driver

Japanese Yaskawa servo motor and drivers

Operating System

Syntec 60we

Max.

Traveling Speed

55m/min

Max Working speed

20m/min

Compatible Software

Ucancam/Type3/Artcam/A rtcut etc

Resolution

0.01mm

Command

G code (HPGL, U00, mmg, plt)

Working Voltage

AC220V, 1PH or 380V, 3PH, 50/60Hz
