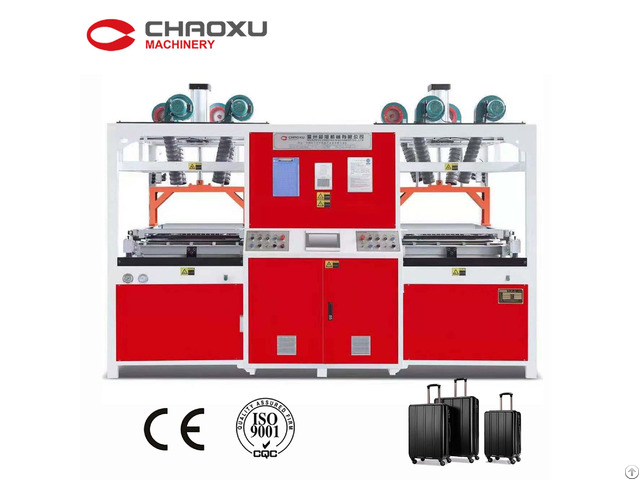

Chaoxu Brand 20 28 24 Inch Luggage Set Vacuum Forming Machine - China
price: 14000.00 Dollar US$
Model: YX-24A
Sheet Material and Thickness: ABS, PC etc；1-4MM
Raw Material: ABS/PC/PS/PE/Pet
Input power: 380V
Vacuum capacity : 0.3M³
Vacuum pressure : -0.07 ~-0.09MPA
Air pressure: 0.65-0.75MPA
Air consumption: 650L / MIN
Weight: 2.2T
Total Power: 49KW
Forming Dimension: 690*510*200MM
Overall Dimension: 3180*1860*2410MM
Brand Name: CHAOXU
Origin: Zhejiang, China (Mainland)
Automation: Automatic
Shaping Mode: Die Molding
Driven Type: Pneumatic
Certification: ISO9001, CE
This machine is suitable for forming of such sheet as ABS,PC or recycled material.
It is special for processing
Suitcase/Lugga ge/Trolley case shell professionally with fast speed and high good quality.
The YX-A series is provided with automatic separated fram operation and upper-lower double heating with PLC intelligent control system.
Machine can be customized as customer required.
Company Contact:
- Posted By: Wenzhou Chaoxu Machinery Co.,ltd
- Phone: 008617328812279
- Address: Wenzhou Chaoxu Machinery Co.,ltd , Songqiao Industries Zone, Wanquan Town, Pingyang County, Wenzhou , Zhejiang , China
- Email:
- Website: https://www.cnchaoxu.com/
Published date: May 13, 2021 - Modified date: May 13, 2021
- Business Description: Our main products are Plastic Sheet Extrusion Machine and Vacuum Forming Machine, Cutting Machine, Punching Machine and so on.
We can provide the whole line luggage making machines.
