Ck 61125 Cnc Lathe Machines - China

price: contact company for price

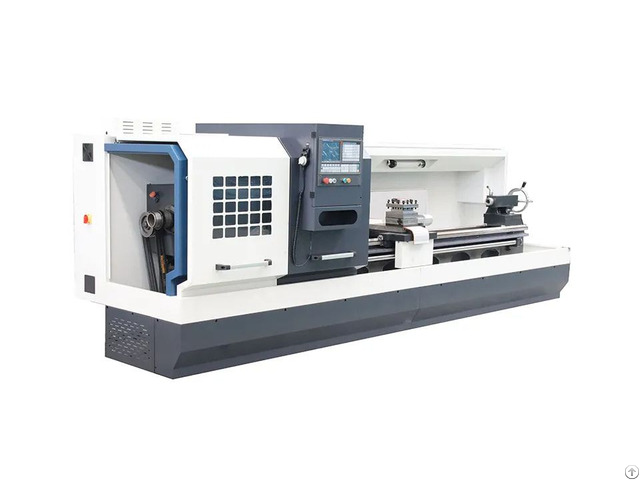

Ck 61125 Cnc Lathe Machines

Products Photos Catalog 61125 Cnc Lathe Photos Catalog

Ck61125-1000/1500/2000/30 00+

the bed is integrally cast, the base is widened, the front and rear sinks, and the front and rear through-type chip removal mechanism make it safer for workers to clean the iron filings.

heavy-duty tailstock, the tailstock sleeve has reached 130mm, with good load-bearing capacity and more stable processing.

acr machine tool ck61125 specifications:

max.

swing over bed: 1125 mm

x-axis rail span: 330 mm

z-axis rail span: 1000/1500/2000/3000+ mm

max.

swing over cross slide: 850 mm

distance between centers: 1000/1500/2000/3000+ mm

maximum turning length: 1000/1500/2000/3000+ mm

spindle bore: Ф130 mm

bar diameter: Ф128 mm

spindle nose type: a2-11

spindle bore taper: mt5

spindle speed steps: 30-84.5, 53-150, 125-350, 300-835 rpm

tailstock quill diameter: 130 mm

tailstock quill taper: mt6

tailstock quill travel: 265 mm

tailstock configuration: ordinary hand-crank

number of electric tool holder positions: 4-position

tool shank size: 32×32 mm

x/z axis fast movement speed: 4 m/min (x-axis) / 5 m/min (z-axis)

minimum setting unit: 0.001 mm

main motor power (z axis): 22 kw

total power capacity: 30 kw


Company Contact:


  • Phone: 13793705668

  • Address: No.669,Guohe Road,Economic Development Zone, Tengz, tengzhou , shangdong , China

  • Email: Email


Published date: April 14, 2026

  • Business Description: ACR is a China CNC machine manufacturer and factory, providing CNC lathes, milling machines and machining centers with reliable quality for global industries.
