CNC Hot Wire Foam Cutter for EPS Styrofoam Cutting

Model: CNC Independent Axis Hot Wire Foam Cutter

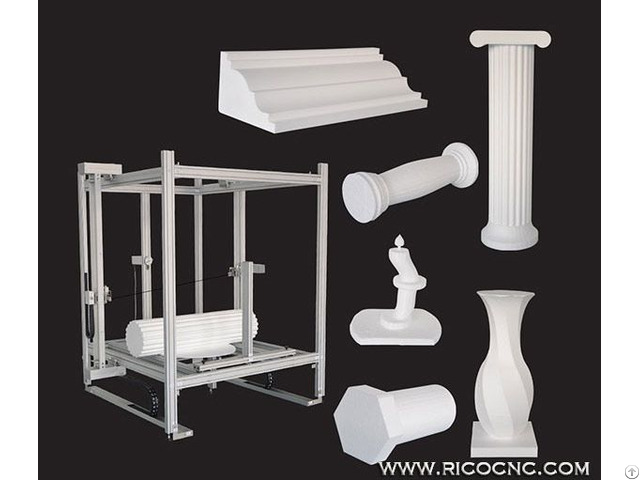

Hot wire foam cutter is a tool used to cut polystyrene foam, Styrofoam, EPS, sponge, and similar materials.

This CNC (computer numerical controlled) hot wire cutter, controlled by controller, cut the shapes automatically as per your design.

Also it can equipped with lathe attachments, which can be used with either stretched or preformed wire.

Lathe attachments (CNC hot wire foam lathe) allow cutting of spiral shapes, and are often used to create concrete forms for ornamental and structural items, such as planters and stairway balusters and newels.

CNC Hot Wire Cutter Features:

Machine Height: 1300mm

Machine Width (Hot Wire Length): 1300mm, 2500mm or 3000 mm

Machine Length: 1300mm, 2500mm or 3000 mm

RC-IX Series——7-axis control system (A Global Leader), the hot wire ends are controlled individually.

It matches the hot wire tension inductor, hot wire extended /tensioning system and Voltage compensation system.

The hot wire machine can be controlled remotely.

Both ends of the hot wire can run asynchronously, and both ends of the object can be different shapes.

Turn Table, Lathe and Shapewire are available.

RC-IX1325 Hot Wire Foam Cut Machine Parameters:

Working area: 1300mm*2500mm

Feeding height: 1300mm

Cutting wire length: 1300mm

Electronic handle controller

7-axis control system

FoamShaper software (Free upgrade included)

Hot wire tension inductor

Machine structure: Europe standard profiles

Stepper motor and drivers

Leadshine stepper motor and driver

Support file: DXF

Cutting accuracy: ±0.5mm

Cutting current: 0-4A

Cutting speed: 0-5000mm/min

A spool of cutting wire (100 grams)

Voltage: AC220V, single phase

Available potions: Lathe/Turn Table & ShapeWire Tool, TitaniumWire

5 years warranty

Operational and assembly manuals

Hotwire Foam Cutter Applications:

This is a very popular series among our customers due to a wide variety of available sizes and optional equipment.

All the IX series cutters can be equipped in the DoubleWire feature (two cutting wires) and the majority of them can come with a TurnTable, Lathe, ShapeWire Tool, independent Axis Control and many other features which turn your cutter into a truly versatile one.

While custom-made machines are of course available the wide choice standard sizes in the IX series satisfies the majority of our customers.

We can also supply foam mould making cnc routers for foam milling, relief carving, and foam router bits, etc.

Welcome your inquiry.
