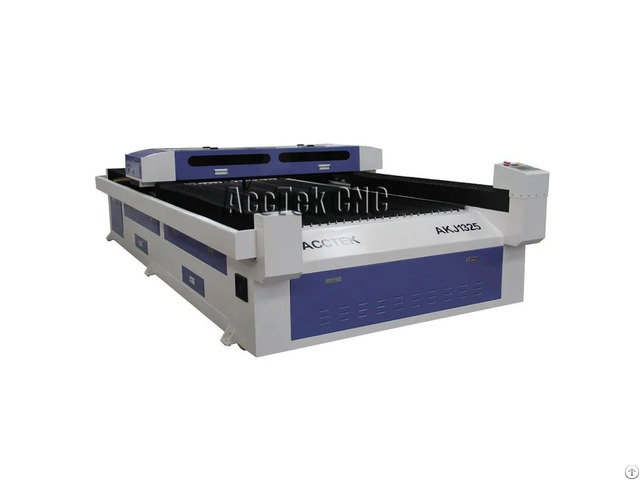

Co2 O2 Cnc 3d Laser Cutting Machine For Fabric Metal - China
price: 4800.00 Dollar US$
Items Parameter
Product name CNC Metal and nonmetal laser cutting machine
Processing area 1300mm*2500mm Laser power 90W-150W
Laser type Sealed Co2 glass laser tube
Controller Ruida laser system
Following up system With
Cooling mode Water cooling and protection system
Transmission and rails Taiwan HIWIN linear guide rails and Fulong belt
Positioning accuracy ±0.05mm Compatible Software Laser cut /CorelDraw/AutoCAD/Photos hop Whole machine size 3400*1830*1100mm
Engraving speed 1-6000mm/min
Cutting speed 1-1000mm/min
Cutting thickness 0-30mm acrylic (others determined by materials)
Resolution ratio ≤0.0125mm
Position system Red dot
Interface USB
Minimum shaping character letter 0.5mm, Chinese 0.5mm
Support graphic format DST, PLT, BMP, DXF
Driving mode Stepper motor
Cooling mode Circulation water cooling
Air pump With
Exhaust fan With
Working voltage AC 110 - 220V±10%, 50 - 60Hz or depend on customer
Operating temperature 0-45°C
Operating humidity 5-95%
Options Up and down working table
Rotary attachment for column materials
Chiller CW3000-6000
Multi-head
Guarantee time 1 year
