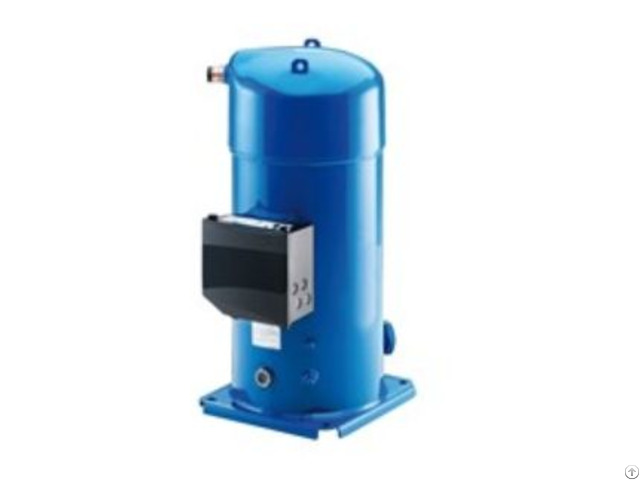

Danfoss Compressor SH090A9ALC Refrigerant: R410A, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 380/3/60

Product details Approval standard CE

UL

Brand technique Scroll compressor

Capacity control Fixed speed

Colour Blue

Compressor power supply [V/Ph/Hz] 380/3/60

Configuration code Single

Connection type Brazed

Description SH090-9

Diameter [mm] 243 mm

Discharge connection height [mm] 451 mm

Discharge connection pipe size [in] 7/8 in

Discharge connection size [in] 7/8 in

Drawing number 8560004f

Economizer No

Factory HP [bar] 0 bar

Factory LP [bar] 0 bar

Fitting standard ODF

Frequency [Hz] 60

Gauge port HP None

Generation code B

Glass mounting Threaded

Glass torque [Nm] 50 N-m

High side max pressure (Ps) 48.7 bar

High Side TS Max 150 °C

High Side TS Min -35 °C

High Side Volume 0.7 L

High value of nominal voltage at 50Hz [V] 0 V

High value of nominal voltage at 60Hz [V] 380 V

High value of voltage range at 50Hz [V] 0 V

High value of voltage range at 60Hz [V] 418 V

IP protection class IP54 (with cable gland)

Low side max pressure (Ps) 33.3 bar

Low Side TS Max 55 °C

Low Side TS Min -35 °C

Low Side Volume 11.7 L

Low value of nominal voltage at 50Hz [V] 0 V

Low value of nominal voltage at 60Hz [V] 380 V

Low value of voltage range at 50Hz [V] 0 V

Low value of voltage range at 60Hz [V] 342 V

LRA 124 A

Maximum Operating Current [MOC] 23 A

MCC 26 A

Model number SH090A9ALC

Motor protection Internal overload protector

Mounting torque [Nm] 15 N-m

Nominal cooling capacity 60 kBTU/h 92.49 kBtu/h

Nominal cooling capacity at 50Hz 19.8 kW

Nominal cooling capacity at 60Hz 27.1 kW

Number of starts per hour [Max] 12

Oil charge [L] 3 L

Oil equalization 1-3/4'' Rotolock

Oil reference 160SZ

Oil type POE

Power connections Screw 4.8 mm

Refrigerant R410A

Refrigerant charge [kg] [Max] 5.9 kg

Relief valve None

RLA 18.6 A

Rotational speed at 50Hz [rpm] 0 rpm

Rotational speed at 60Hz [rpm] 3500 rpm

Segment usage Air conditioning

Shipped instructions Installation instructions

Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers

Shipped oil Initial oil charge

Suction connection height [mm] 235 mm

Suction connection pipe size [in] 1 1/8 in

Suction connection size [in] 1 1/8 in

Swept volume [cm3] 88.4 cm³

Technology Scroll

Test dif [bar] [Max] 37 bar

Test HP [bar] [Max] 48.7 bar

Test LP [bar] [Max] 33.3 bar

Torque earth [Nm] 2 N-m

Torque power [Nm] 3 N-m

Total height [mm] 482 mm

Type SH

Type designation Compressor

Viscosity [cP] 32 cP

Winding resistance for three-phase compressors with identical windings [Ohm] 1.05 Ohm 1 - Danfoss compressor have Ultra high energy efficiency.

2 - The motor can effectively protect the motor from the damage of high temperature

3 - high voltage current, low noise low exhaust impulse noise value 4 - Rugged Design and Proven Durability.

5 - Straight Suction Tube Allows For Low Profile Application

6 - Performance Improves as Scroll Sets Wear-In

7 - Internal Motor Protection with Start Winding Protection on Single Phase Models
