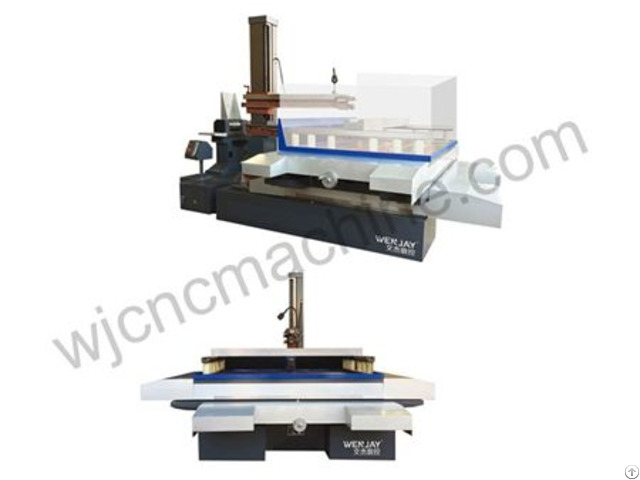

DK77100 CNC electric spark wire cutting machine tool(super machine tool)

automatic protection CNC Machine Tool Description

Type Unit DK77100

Worktable Size (W*L) mm 1100×1500

X, Y-axis trip(Y×X) mm 1000×1200

U, V-axis trip(U×V) mm 70×70

Max load weight kg 3000

Max linear cutting thickness mm 1000

Machined taper/work piece thickness 12°/80mm

Z-axis elevation mode Manual/electric elevation

Type of guide track Slide guide

Electrode wire diameter range mm Ф0.15~0.20mm

Wire speed of auto power off CNC Machine Tool m/sec 1~11.4m/sec 7 frequency conversion adjustable

Machining accuracy mm ≤0.015

Max cutting efficiency mm²/min ≥120

Optimum surface roughness um Ra≤2.5

Control mode X, Y, U, V stepper motor

Number of control axis Four-axis linkage

Min instruction unit mm 0.001

Power supply 380VAC/50HZ Three-phase four-wire 380VAC/50HZ

Max operating current of 4-axis linkage CNC machine tool A 12

Machine tool power consumption kw ＜2

Working fluid DX-1 DX-4 Nanguang-1

Working fluid tank volume L 55

Work liquid filtrate way Strainer

Host weight kg 5000

Host outline size mm 3000×2800×2500
