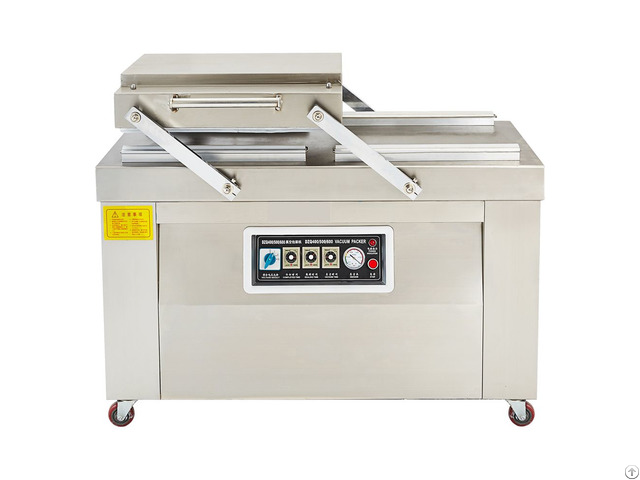

Double Chamber Vacuum Packing Machine Model Dzd 2sa Flat Plate - China

Product Application:

Vacuum packing machine model DZD-2SA is used in vacuum packaging for the food, pharmaceutical, aquatic, chemical and electronic industries.

It can prevent the products from oxidization and mildew, as well as corrosion and moisture, keeping the quality and freshness of the product over a prolonged storage time.

Main Feature:

1) Double chamber take turns to work, improve working efficiency.

2) Standard stainless steel machine body, which is firm and durable.

3) Simple control panel make the operating easily.

4) High quality vacuum pump, pure copper for key components, high quality steel wire suction pipe, and competitive price.

5) Bilateral circulation heat, good heat dissipation, prolong the service life of the machine.

6) Specification is customizable Main technical parameter:

Model: DZD400-2SA | DZD500-2SA | DZD600-2SA

Vacuum chamber size: 420*430*70mm | 530*540*70mm | 630*630*70mm

Max.

Package size: 400*310*70mm | 500*400*70mm | 600*500*70mm

Machine size (L*W*H): 1000*630*900mm | 1200*680*950mm | 1530*860*1060mm

Number of pump: 1 | 2 or 3 | 2 or 3

Max.

Speed of evacuation: 20 m3/h | 20 m3/h *2 or 20 m3/h *3 | 20 m3/h *2 or 20 m3/h *3

Power source: 220V±10%/50HZ/1phase 0.9kw | 380V±10%/50HZ/3phases 0.75kw or 220V±10%/50HZ/1phase 0.9kw | 380V±10%/50HZ/3phases 0.75kw or 220V±10%/50HZ/1phase 0.9kw

Power: Max.

1.5kw | Max.

1.5kw | Max.

2kw

Sealing speed: 3-4r/min

Single seal size: 400*10*2mm | 500*10*2mm | 600*10*2mm

Machine weight: 140kgs | 160kgs | 210kgs Note:

1) The Power Source is not customizable.

2) The number of pump is optional within 2 or 3 for Model DZD500-2SA and DZD600-2SA.

3) For waterish materials such as sea blubber skin etc., Model DZD500-2SA or DZD600-2SA is preferable.
