Double Head Fully Automatic Vacuum Forming Machine For Luggage - China

price: 20500.00 Dollar US$

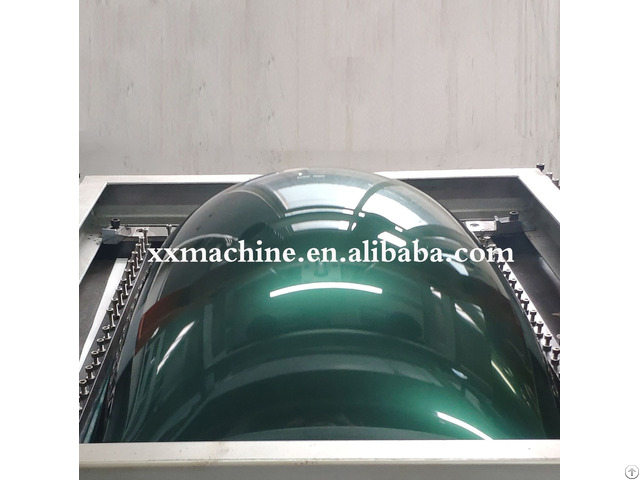

Double Head Fully Automatic Vacuum Forming Machine For Luggage

Products Photos Catalog Double Head Vacuum Photos Catalog

This machine is suitable for forming of such sheet as ABS, PC or recycled material.

It is special for processing luggage/trolley case shell professionally with fast speed and high quality.

The CX-P series is provided with automatic separated frame operation and upper-lower double heating with PLC intelligent control system.

Machine can be customized as customer requirement.

Model: CX-20P

Sheet Material and Thickness: ABS, PC etc；1-4MM

Input power: 380V

Vacuum capacity : 0.15M³

Vacuum pressure : -0.07 ~ -0.09MPA

Air pressure : 0.65-0.75MPA

Air consumption : 400L / MIN

Weight: 2.1T

Total Power: 38KW

Forming Dimension: 600*420*200MM

Overall Dimension(L*W*H ): 2880*1520*2410MM

Product Type: Sheet

Applicable Industries: Luggage/Refrigerator industry

Type: Vacuum Forming Machine, New

Use for: blisting and forming ABS, PC sheet

Machine type: hard sides suitcases in a craft way auto forming machine

Automatic: Yes

Brand Name: CHAOXU

Place of Origin: Zhejiang, China

Certification: ISO9001/ CE

Wenzhou Chaoxu Machinery Co., ltd has been majored in manufacturing ABS.

PC Whole Line Luggage Making Machine over 20years.

We can help you to set up a luggage factory from Start to End.

Welcome to inquiry!


Company Contact:


  • Phone: 008617328812279

  • Address: Wenzhou Chaoxu Machinery Co.,ltd , Songqiao Industries Zone, Wanquan Town, Pingyang County, Wenzhou , Zhejiang , China

  • Email: Email


Published date: May 13, 2021 - Modified date: May 13, 2021

  • Business Description: Our main products are Plastic Sheet Extrusion Machine and Vacuum Forming Machine, Cutting Machine, Punching Machine and so on.

    We can provide the whole line luggage making machines.
