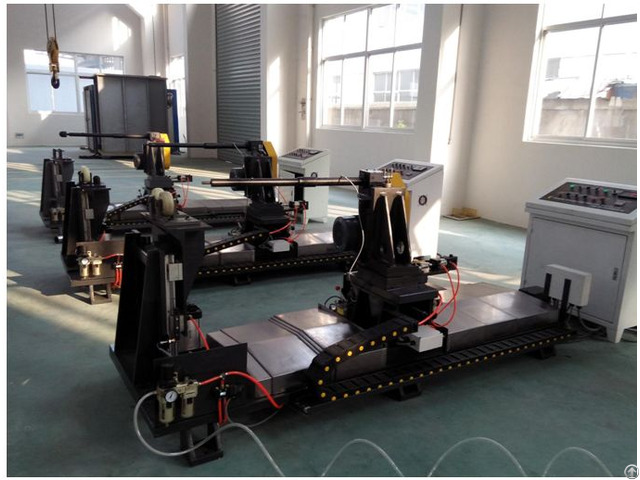

Drill Pipe Friction Welding Repair Machine - China

Drill pipe repairing machine is used in grinding upsetting transitional zone (caused by frition-welding) of drill pipe inner bore or excircle surface.

HY-6 machine is auto controlled by PLC, compared with manual repairing machine, it can reduce labor intensity and reduce the dust harm to operator, protect the health of worker, improve working efficiency and grinding quality.

Items Unit HY-6

Spindle center height mm 1050～1200

Max.

working travel mm 1400

Grinding rod diameter mm φ15 φ20 φ25

Grinding wheel speed r/min 3000～8000

Grinding wheel diameter mm φ38 φ40 φ45 φ48 φ55 φ58 φ65 φ72 φ78 φ80 Control mode PLC

Main motor power KW 4

Power supply 三相交流380V 50HZ

Auxiliary gas pressure MPa 0.6

Gas consumption m3/min 0.35

Machine weight ㎏ 1280

Machine dimension(L×W×H) mm 2900*1150*1450
