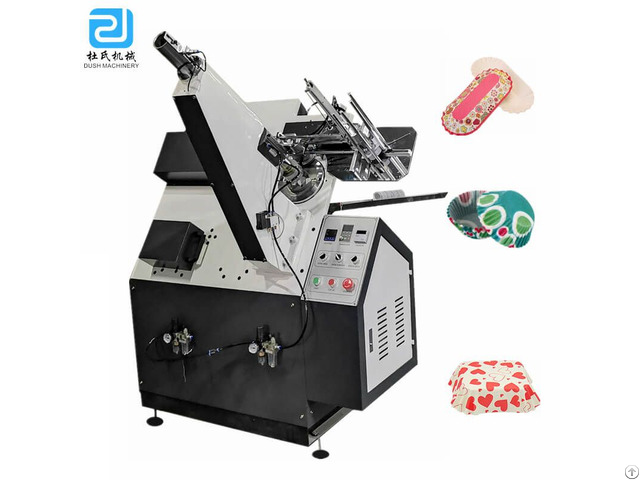

Ds Ja Automatic Paper Baking Cake Cup Tray Making Machine - China

This cake cup machine has a simple structure, adopts inverter control, automatic temperature control, easy operation, high efficiency, stable operation, and is a first-class equipment at home and abroad.

It is suitable for cake cup machine manufacturers, bakeries, western restaurants, snack food factories and supermarkets.

Advantanges:

Pneumatic manipulator picking paperAutomatic separating paper

Size:

Mold is changeableφ55-φ140mm


Speed:

20-40times/min.

15-25pc s/time Paper Baking Cup Machine has a first-class equipment at home and abroad with the advantages of simple structure, inverter, auto temperature controller, easy to operate, high efficient, stable running.

It has the advanced technology such as pneumatic manipulator controlling paper, auto separating paper, mold punching-forming by heat, trays discharging etc.

Easy exchanging molds to make different sizes paper trays and aluminum foil trays.

It is a ideal equipment of making paper cake trays, paper food trays, paper cake cups, paper food dishes, cake plates, cake dishes and containers etc.

TECHNICAL DATA

Suitable Size φ55-φ140mm(mold changeable)

Raw Material 24-50gsm anti-oil paper(grease proof paper), aluminum foil paper, etc.

Ration Productivity 20-40times/ min.

15-25pcs/ time

Total power 4.0 KW

Air Pressure/ Air Flow 0.3 m3/min, >0.6mpa(need to buy an air compressor)

N.W./G.W. 600kg/ 700kg

Electric Power 220v, single phase, 50Hz; 380v, three phase, 50Hz; Contact supplier for other type

Overall Dimension 1580L* 1360W* 1780H(mm)
