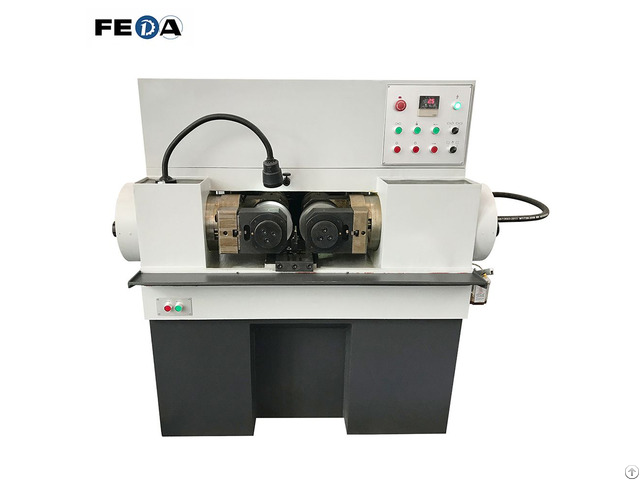

Fd-20t Cylindrical Thread Rolling Die - China
price: 16850.00 Dollar US$
1 - Automatic feeding with adjustable brackets
2 - Speed is adjustable for different products
3 - 75mm hole diameter for SKD11/DC53 thread rolling dies
4 - Max.
Rolling pressure is about 200KN
6 - CE, ISO9001-2008
Specification
Working diameter 10-70mm
Thread pitch 1.0-6mm
Thread length In feed or Thru feed
Spindle speed 28/35/45/56rpm (variable speed)
Outside diameter of rolling die 178mm
Inside diameter of rolling die 75mm
Thickness of rolling die 140mm
Feed stroke 0-12mm
Total machine power 11KW
Max rolling pressure 20T
Supply voltage 380V 3P 50Hz
Weight(reference) 2800 (KG)
Package Dimension(L*W*H) 1600*151 0*1750mm
Dimension(L*W*H) 1550* 1460*1650mm
Company Contact:
- Posted By: Feda Industry Co., Ltd
- Phone: +8613392185053
- Address: No. 608, Hong Hai Building, Hongxing Community, Songgang Street, Bao'an District, Shenzhen, China, Shenzhen , GuangDong , China
- Email:
- Website: https://szfeda.en.alibaba.com
Published date: February 20, 2025 - Modified date: February 25, 2025
- Business Description: We can provide thread rolling machine and dies for making thread on bolts, thread rods, fasteners, etc.
Can provide related automatic feeder, to save time and cost.
