    • Fd 25e Screw Making Machine Automatic Loading Device - China

    price: 6950.00 Dollar US$

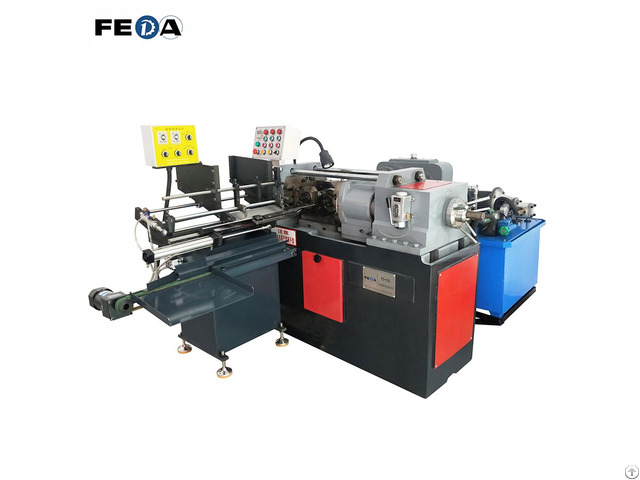

    Fd 25e Screw Making Machine Automatic Loading Device

    Products Photos Catalog 25e Screw Machine Photos Catalog

    1 - Automatic feeding with adjustable brackets

    2 - Speed is adjustable for different products

    3 - 54mm hole diameter for SKD11/DC53 thread rolling dies

    4 - Max.

    Rolling pressure is about 150KN

    5 - It is easy to operate and maintain the machine

    6 - CE, ISO9001-2008 Specification Working diameter 5-40mm Thread pitch 0.7-3.5mm Thread length In feed or Thru feed Spindle speed 36/47/60/78rpm Outside diameter of rolling die 135-170mm Inside diameter of rolling die 54mm Thickness of rolling die 110mm Min.

    center distance between die spindles 120mm Max.

    center distance between die spindles 240mm Output(pcs/min) 5-35 pcs/min Machine motor 5.5HP (4KW) Hydraulic motor 3HP (2.2KW) Max.

    Rolling pressure 15T Supply voltage 380V 3P 50Hz Weight(reference) 1700(KG) Package Dimension(L*W*H) 1600*1480*1240 mm Dimension(L*W*H) 1500*1380*1140 mm


    Company Contact:


    • Phone: 13312913043

    • Address: Songgang Street, Shenzhen , China , China

    • Email: Email


    Published date: February 27, 2025

    • Business Description: Thread rolling machine, thread rolling dies, screw making machine, flat die thread rolling machine, thread rollers, thread rolling machinery, auto lathe machine, tapping machine, heading machine, bolt and nuts, thread rods
